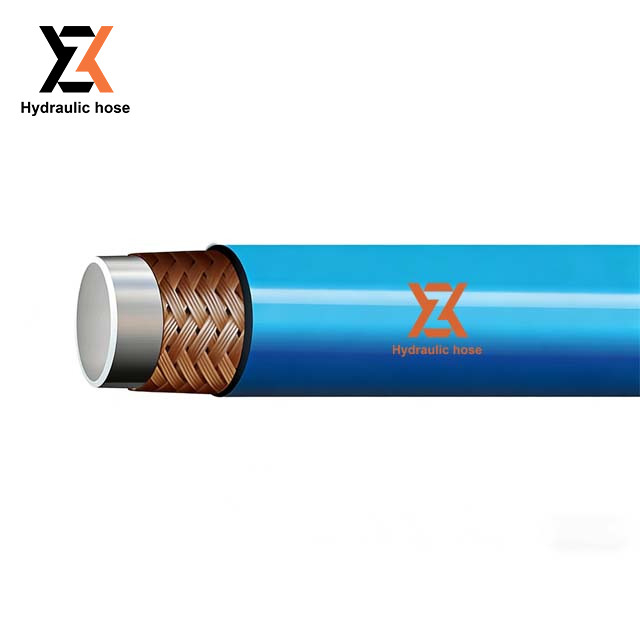

Fiber Reinforced High-pressure Resin Hose

Construction:This hose consists of an inner tube of oil synthetic rubber,a single fiber braid reinforcement ,an oil and weather resistant rubber cover.
Working Temp.: From -40℃ up to +100℃,the conveying medium temperature can be 0℃ to 70℃ if it is water.

Model:
SAE 100 R7

Quantity:
Availability:





Inquire Add to Basket

Product Description

FAQ

Applications

Suitable for conveying hydraulic fluids such as glycol ,mineral oil,lubrcation,emulsion,hydrocarbons etc, Water and air. can not be used for conveying phosphate ester groups.

Technical Parameters

Product Series	Nominal Diameter	Size	ID (mm)	OD (mm)	W.P	B.P	Min.B.R
Product Series	mm	inch	min	max	Mpa	Mpa	mm
R7-3-05	5	3/16”	4.6	10.3	21	84	35
R7-4-06	6	1/4”	6.1	12.7	22.5	90	50
R7-5-08	8	5/16”	7.9	14.3	19	76	50
R7-6-10	10	3/8”	10.3	15.9	17.5	70	80
R7-8-12.5	12.5	1/2”	12.7	19.8	14	56	100
R7-3-05	5	3/16”	4.6	10.3	25	100	55
R7-4-06	6	1/4”	6.1	13.3	27.4	109.6	75
R7-5-08	8	5/16”	7.9	15	26	104	85
R7-6-10	10	3/8”	10.3	18	25	100	100
R7-8-12.5	12.5	1/2”	12.7	21.6	21	84	140
R7-10-16	16	5/8”	15.9	23.6	16	64	165
R7-12-19	19	3/4”	19	26.4	14	56	195
R7-16-25	25	1”	25.4	34	10.5	42	256

Production Workshop

Fiber weaving

Steel wire winding

Wire braiding machine

Friction testing machine

High-speed joint venture

Storehouse

FAQ

Q1: What is a fiber braided high-pressure thermoplastic hose?

A1: It is a type of lightweight, high-pressure hose. Its construction features a braided synthetic fiber (like polyester or aramid) reinforcement layer and a smooth inner liner made of thermoplastic material such as polyurethane or nylon.

Q2: What are its main benefits over traditional rubber high-pressure hoses?

A2: The key benefits include extreme lightweight design, superior flexibility, and outstanding resistance to a wide range of chemicals.

Q3: What standards do your products comply with?

A3: All hoses comply with GB, DIN, RMA, AS, JIS, SABS, and other standards. We also develop special specifications according to customer requirements.

Q4: Do you accept small orders?

A4: Yes. Please feel free to contact us. To better serve customers and expand cooperation opportunities, we accept small orders.
