Crimp Hose Ferrule For Industrial Hydraulic Assembly

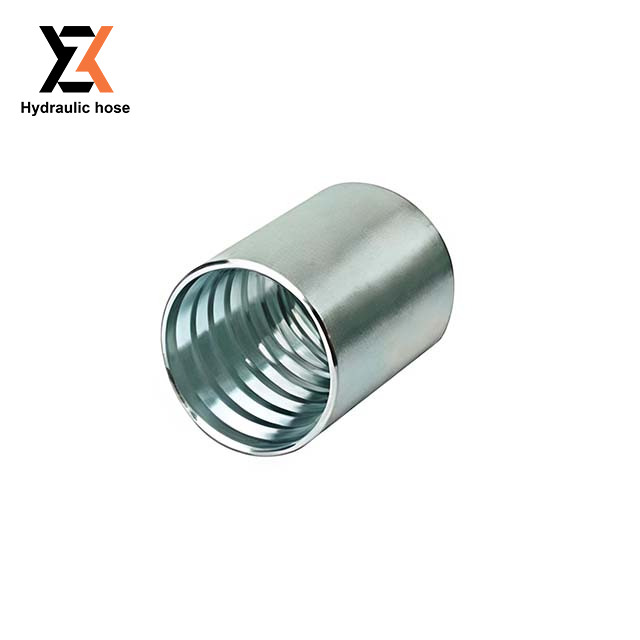

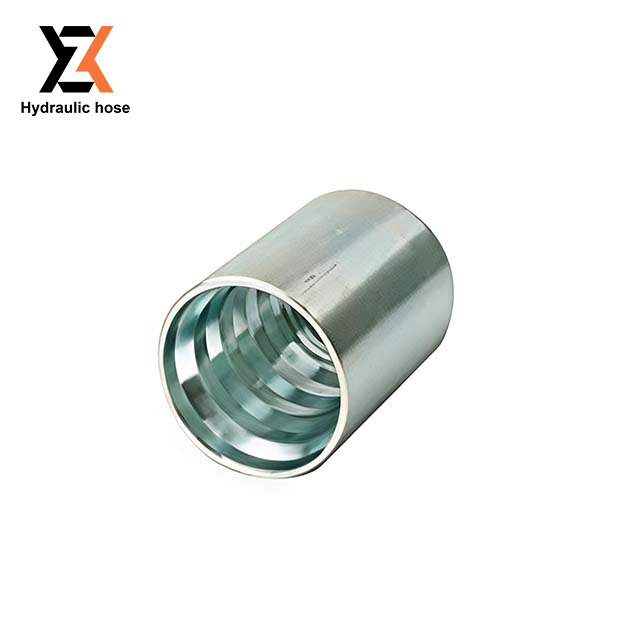

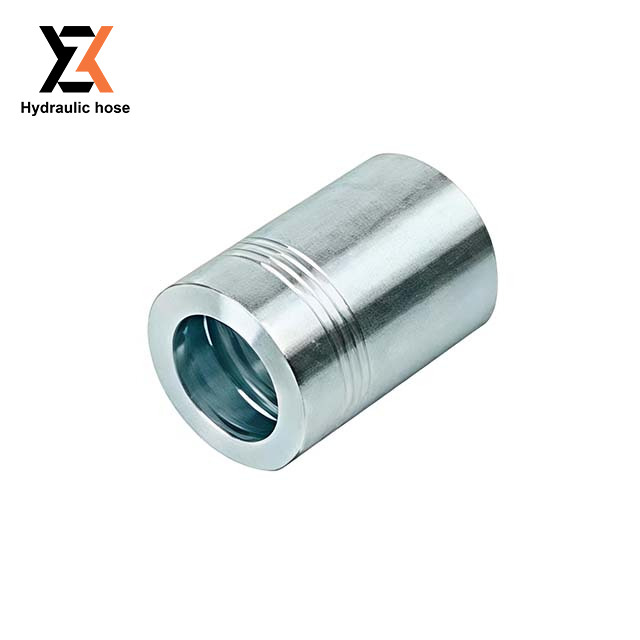

Our crimp hose ferrule for hydraulic assemblies is a precision-engineered crimp sleeve designed to create secure, permanent, and leak-proof connections for industrial hydraulic hose assemblies.

Quantity:
Availability:





Inquire Add to Basket

Description

FAQ

Built exclusively for hydraulic equipment manufacturers, fluid power system integrators, mobile machinery operators, and hydraulic repair service facilities, this ferrule adheres to global SAE, EN, and DIN standards, solving critical pain points of hose pull-out, high-pressure leakage, and short assembly service life in heavy-duty industrial environments. Our industrial hydraulic hose ferrule delivers unwavering reliability for high-pressure hydraulic systems, reducing equipment downtime and ensuring operational safety for your business.

Fiber weaving	Steel wire winding	Wire braiding machine
Friction testing machine	High-speed joint venture	Storehouse

Core Features & Technical Advantages

Global Standard Compliance for Universal Industrial Compatibility

Our SAE standard hydraulic crimp ferrule is engineered to match industry-leading hydraulic hose specifications, including SAE 100R1AT/EN 853 1SN single wire-braided hoses and SAE 100R2AT/EN 853 2SN double wire-braided hoses. This universal compliance ensures seamless integration with standard hydraulic assembly components, eliminating compatibility risks and streamlining your production or repair workflows. The ferrule supports both non-skive and skive crimping configurations, depending on the model, for maximum flexibility in assembly processes.

High-Strength Construction for Extreme Hydraulic Pressure

Manufactured from high-grade carbon steel with a corrosion-resistant zinc plating, our high-pressure hydraulic ferrule is built to withstand extreme pressure fluctuations and harsh operating conditions of industrial hydraulic systems. The heavy-duty material delivers exceptional tensile strength, while the zinc plating provides robust protection against rust, corrosion, and chemical exposure in industrial, agricultural, and construction environments. Optional stainless steel construction is available for highly corrosive or sanitary applications.

Precision Machined Crimp Geometry for Superior Pull-Out Resistance

At the heart of our wire-braided hose crimp sleeve is a precision-machined internal bore with optimized serration patterns, designed to grip the hose reinforcement and cover evenly during crimping. When crimped to manufacturer specifications with compatible die sets and hose inserts, this design delivers industry-leading pull-out resistance and a 100% leak-free seal, even under continuous high-pressure operation up to 6000 PSI. This ensures long-term assembly integrity, reducing the risk of catastrophic hydraulic system failure.

Flexible Customization for Non-Standard Hydraulic Assemblies

We offer complete customization for our custom hydraulic hose ferrule, with adjustable dimensions, material options, plating finishes, serration patterns, and compatibility with unique hose types. This allows you to tailor the ferrule to non-standard hose diameters, special hydraulic fluids, or unique industrial applications, while maintaining compliance with global industry standards.

Applications & Industry Use Cases

Our crimp hose ferrule for industrial hydraulic assembly is ideal for heavy-duty hydraulic applications, including industrial hydraulic equipment manufacturing, mobile construction machinery hydraulic systems, agricultural equipment hydraulic assemblies, hydraulic repair and maintenance workshops, material handling equipment fleets, and oil and gas auxiliary hydraulic systems.

Detailed Technical Specifications

Parameter	Standard Specification	Customization Options
Compatible Hose Standards	SAE 100R1AT/EN 853 1SN, SAE 100R2AT/EN 853 2SN	Custom compatibility for non-standard hose types
Hose ID Range	DN 6 (1/4") to DN 50 (2")	Extended sizing for larger or specialty hose diameters
Core Materials	Zinc-Plated Carbon Steel	Stainless Steel, Special Alloy Materials
Crimp Type	Non-Skive Standard	Skive Configuration, Custom Serration Patterns
Operating Pressure	Up to 6000 PSI (matching hose rating)	Upgraded ratings for extreme high-pressure systems
Standard Part Series	00110 (1-Wire Hose), 26711 (2-Wire Hose)	Custom part numbering and branding
Surface Finish	Clear Zinc Plating	Yellow Zinc, Nickel Plating, Custom Corrosion Coatings

FAQ

Q1: What types of hydraulic hoses are compatible with this ferrule series?

A1:

This ferrule (crimp sleeve) is designed for standard wire-braided hydraulic hoses, such as SAE 100R1AT/EN 853 1SN (single braid) and SAE 100R2AT/EN 853 2SN (double braid), as well as similar 1- or 2-wire hoses. It supports non-skive or skive crimping depending on the model, ensuring a secure, leak-free assembly when crimped properly with compatible inserts/fittings for petroleum-based hydraulic fluids in industrial or mobile applications.

Q2: How do ferrule sizes and part numbers correspond to hose diameters?

A2:

Ferrules are available in a wide range of sizes matching common hose IDs (e.g., DN 6 / 1/4", DN 8 / 5/16", up to DN 50 / 2" or larger). Part numbers typically follow series like 00110 (for 1SN/1-wire), 26711 (for 2SN/2-wire), or similar codes, with dimensions including ferrule ID, OD, and length tailored to the hose OD for precise crimping. Always match the ferrule to the hose's exact outer diameter and reinforcement type for optimal crimp performance and pressure holding.

Q3: What ensures a reliable crimp and high-pressure seal with this ferrule?

A3:

The ferrule is made from high-quality carbon steel (zinc-plated for corrosion resistance), with precise internal serrations or smooth bores that grip the hose cover or reinforcement during crimping. When used with compatible hose inserts and crimped to manufacturer specs (using proper die sets and crimp diameters), it provides excellent pull-out resistance and leak-proof sealing under high pressure, suitable for hydraulic systems up to several thousand PSI depending on hose and fitting combination.

Q4: Can this ferrule be customized for specific hydraulic hose assemblies?

A4:

Yes, special specifications are available according to customer requirements, including adjustments to size, length, material (e.g., stainless steel), plating, serration pattern (skive/non-skive), or compatibility with unique hose types. This allows tailoring for custom high-pressure assemblies, non-standard diameters, or special applications while maintaining compatibility with standards like SAE, EN, or DIN equivalents.
