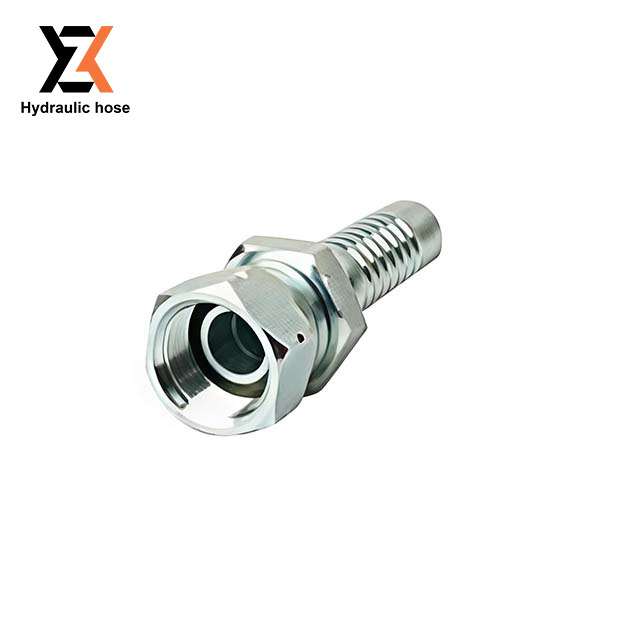

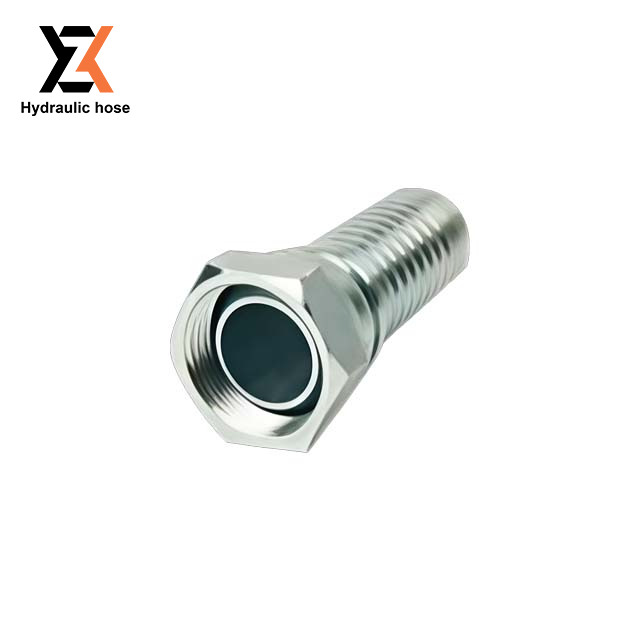

Designed to deliver unmatched leak-free performance in high-pressure, dynamic operating environments, this fitting aligns with global hydraulic industry standards to deliver consistent reliability for industrial equipment operators, machinery OEMs, and hydraulic system integrators. Compatible with a wide range of petroleum-based and water-based hydraulic fluids, our flared ORFS female hydraulic fitting eliminates common pain points like pressure leakage, hose twisting, and connection failure in demanding hydraulic circuits, serving as a critical component to maintain uninterrupted equipment operation and reduce unplanned downtime.
Fiber weaving | Steel wire winding | Wire braiding machine |
Friction testing machine | High-speed joint venture | Storehouse |
Our O-ring face seal female hydraulic fitting adopts precision-machined sealing surfaces and thread profiles, paired with industry-leading sealing designs including 37° flare cone, O-ring groove, and metal-to-metal backup sealing structures. This design delivers exceptional vibration resistance and sealing integrity, with a working pressure range of 3000–6000 PSI (subject to size and configuration), effectively preventing leaks even under sustained high pressure and frequent pressure fluctuations.
Crafted from high-grade carbon steel with a premium zinc-plated finish for superior corrosion and rust resistance, with optional 304/316 stainless steel upgrades available for corrosive operating environments. This heavy-duty material construction ensures extended service life, reducing maintenance frequency and replacement costs for your hydraulic systems.

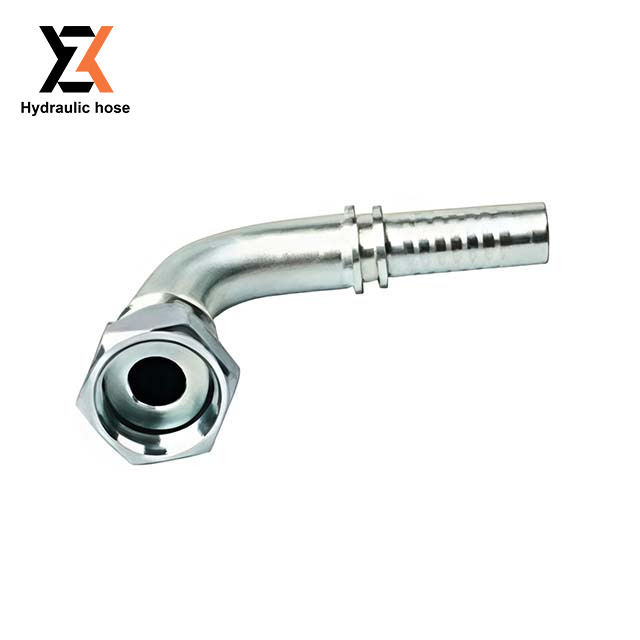

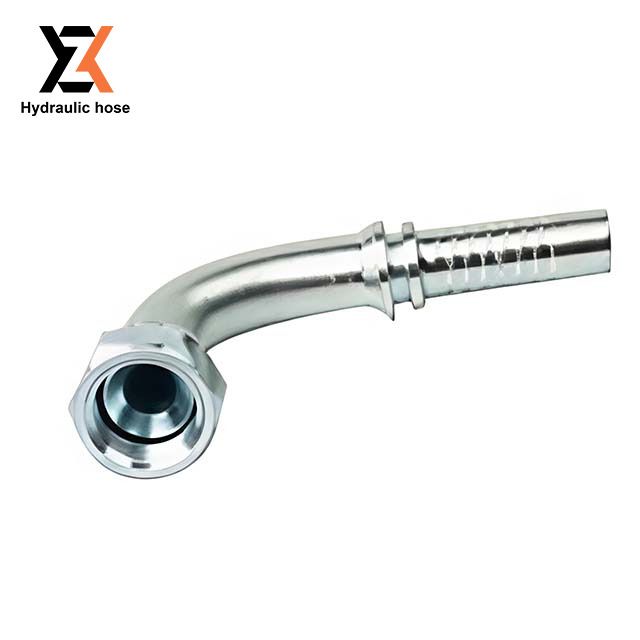

We offer our high pressure hydraulic female hose fitting in a comprehensive size range from 1/4" to 2" (DN 6–50 mm), with multiple configuration options including straight, 45° elbow, 90° elbow, and 360° swivel styles. The swivel design effectively reduces hose twisting during installation and equipment operation, enhancing hose flexibility and service life in dynamic hydraulic applications.
We provide end-to-end customization services to match your exact hydraulic system needs, including material upgrades, specialized plating options (zinc, chrome, phosphate), custom thread combinations, integrated crimp ferrules, and non-standard angle designs. All custom fittings maintain full compliance with global industry standards while adapting to your specific pressure, fluid, and application requirements.
Our leak-proof ORFS hydraulic fitting is engineered for heavy-duty hydraulic systems across a wide range of industrial sectors, with core applications including construction machinery (excavators, bulldozers, cranes, loaders), agricultural equipment (tractors, harvesters, irrigation hydraulic assemblies), industrial manufacturing (hydraulic presses, injection molding machines, automated production lines), and mobile hydraulic equipment (utility vehicles, forestry machinery, material handling equipment).
Parameter | Specification Details |
Supported Thread Standards | JIC 37° flare (SAE J514), NPTF dry seal, ORFS flat face, BSPP, Metric threads |
Size Range | 1/4" to 2" (DN 6–50 mm) |
Rated Working Pressure | 3000–6000 PSI (varies by size and type) |
Core Material Options | High-grade carbon steel (zinc-plated); 304/316 stainless steel (optional) |
Available Configurations | Straight, 45° elbow, 90° elbow, 360° swivel |
Compliance Standards | SAE J514, ISO 8434-2, DIN 2353 |
Compatible Fluids | Petroleum-based hydraulic fluids, water-based hydraulic fluids |
FAQ
Q1: What types of female threads and standards does this fitting support for hydraulic hose connections?
A1:
This female fitting is available in common hydraulic thread types such as JIC 37° flare (SAE J514), NPTF dry seal, ORFS flat face (O-ring face seal), BSPP, or metric threads. It complies with relevant standards like SAE J514, ISO 8434-2, or DIN 2353, ensuring secure, leak-free mating with male adapters, valves, or ports in high-pressure systems for petroleum-based or water-based hydraulic fluids.
Q2: How does the female fitting ensure leak-proof performance under high pressure?
A2:
The fitting uses precision-machined threads and sealing surfaces (e.g., 37° flare cone, O-ring groove, or metal-to-metal seal) with high-quality carbon steel (zinc-plated for corrosion resistance) or optional stainless steel construction. This design provides excellent vibration resistance and sealing integrity, typically supporting working pressures up to 3000–6000 PSI (depending on size and type), with safety factors to prevent leaks in demanding industrial, mobile, or heavy equipment hydraulic circuits.
Q3: What size range and configurations are available for this female fitting?
A3:
Female fittings are offered in sizes from 1/4" to 2" (or DN 6–50 mm), with options for straight, 45°, 90° elbow, or swivel styles to accommodate different routing needs. Swivel versions allow 360° rotation to reduce hose twisting during installation or operation, improving flexibility and longevity in dynamic applications like construction machinery, agricultural equipment, or industrial presses.
Q4: Can this female fitting be customized for specific hydraulic hose assemblies?
A4:
Yes, the manufacturer provides full customization, including material upgrades (e.g., stainless steel for corrosive environments), plating (zinc, chrome, or phosphate), specific thread combinations, integrated crimp ferrules, or special angles/fittings. Special specifications can be developed to match your exact pressure, size, fluid type, or application requirements while ensuring compatibility with standard hydraulic hoses and systems.
