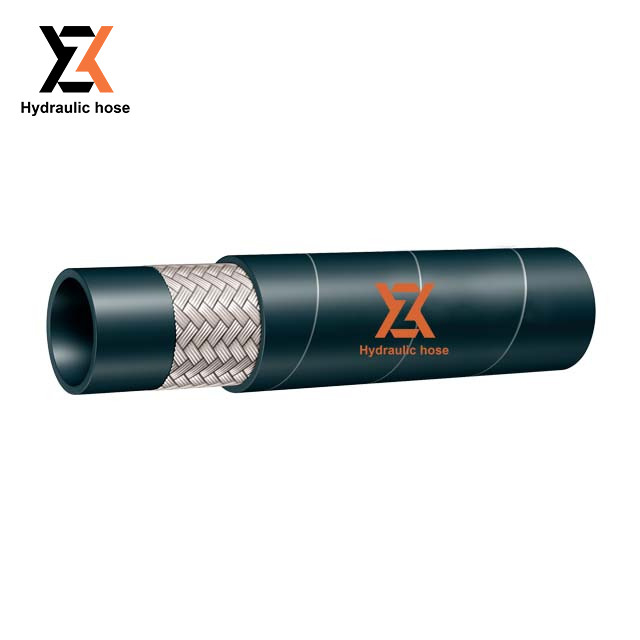

Fuel & Oil Hose

Hose Construction
Inner tube: oil resistant synthetic rubber
Reinforcement: one high tensile fiber braid
Cover：oil, weather and abrasion resistant synthetic rubber
Working Temp.: -40℃ to +100℃

Quantity:
Availability:





Inquire Add to Basket

Product Description

FAQ

Applications

Widely suitable for the transportation of benzene, kerosene, diesel oil, gas, lubricating oil, and other mineral oil.

Technical Parameters

Inside Diameter		Outside Diameter	Working Pressure	Burst Pressure	Min.B.R.	Weight
inch	mm	mm	Bar	bar	mm	kg/m
1/4	6	15.5	20	60	102	0.160
5/16	8	17.5	20	60	114	0.195
3/8	10	19.5	20	60	127	0.270
1/2	13	23.0	20	60	178	0.395
5/8	16	26.0	20	60	203	0.450
3/4	19	30.5	20	60	241	0.585
1	25	38.0	20	60	305	0.890
1-1/4	32	46.0	20	60	419	0.955
1-1/2	38	56.0	20	60	500	1.177
2	51	70.0	20	60	630	1.655

Production Workshop

Fiber weaving

Steel wire winding

Wire braiding machine

Friction testing machine

High-speed joint venture

Storehouse

FAQ

Q1: Is your fuel hose safe to use?

A1: Yes, safety is assured. Our hoses are constructed from specialized fuel-resistant rubber, incorporate a static conductive wire for spark prevention, and are certified to meet SAE and other safety standards.

Q2: What is the replacement interval for an oil hose?

A2: Replacement is based on condition, not a fixed schedule. Regular inspections are essential. Immediate replacement is required upon observing any deterioration such as hardening, cracking, bulging, oil seepage, or excessive swelling of the hose layers.

Q3: What standards do your products comply with?

A3: All hoses comply with GB, DIN, RMA, AS, JIS, SABS, and other standards. We also develop special specifications according to customer requirements.

Q4: Do you accept small orders?

A4: Yes. Please feel free to contact us. To better serve customers and expand cooperation opportunities, we accept small orders.
