Product Overview

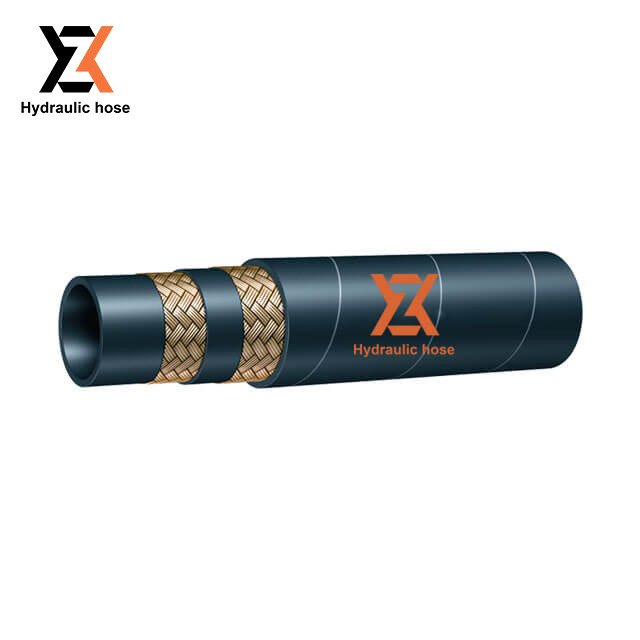

The SAE 100R16 hydraulic hose is a two -wire braid reinforced compact rubber hose designed for medium-to-high pressure hydraulic applications where installation space is limited. The tube is made of oil-resistant NBR synthetic rubber, reinforced with two high-tensile steel wire braids, and covered with oil and weather resistant synthetic rubber.It has a smaller outside diameter and tighter bend radius than SAE 100R2AT / DIN EN853 2SN hydraulic hose, and is widely used as a direct replacement for 100R2AT in construction machinery, agricultural equipment and industrial hydraulic systems with tight routing requirements.
Zhongxu produces 100R16 hoses strictly to SAE J517 and ISO 11237 R16 standards, with 100% proof pressure testing on every batch.
Inner tube: oil resistant synthetic nitrile rubber
Reinforcement: two layers of high-tensile steel wire braid
Cover: abrasion and weather-resistant synthetic rubber
Ideal for:
Construction machinery hydraulic lines
Agricultural equipment
Industrial hydraulic systems
Material handling equipment
Mining support equipment
Hydraulic Hose SAE 100R16 Recommended For:
Medium-to-high pressure hydraulic hoses with limited installation space. Meets or exceeds the requirements of SAE 100R16 and ISO 11237 R16.
Hydraulic Hose SAE 100R16 Application Fields:
Mine hydraulic support, oilfield extraction machinery, mine/road/construction machinery.
INNER TUBE: oil resistant synthetic nitrile rubber
REINFORCEMENT: two layers of steel wire braided
COVER: Black, oil resistant, synthetic rubber
SURFACE: wrapped surface, smooth surface
Hydraulic Hose SAE 100R16 TEMPERATURE RANGE: -40℃ (-40℉) to +100℃ (+212℉), intermittent 120℃
Standard: SAE 100R16 / ISO 11237 R16
Technical Parameters
Nominal Diameter | I.D | W.D | O.D | W.P | P.P | B.P | min B.R | Weight | |||||
mm | inch | Min | Max | Min | Max | Min | max | Bar | Psi | Bar | Bar | mm | kg/m |
6.3 | 1/4 | 6.5 | 6.9 | 11.4 | 12.3 | 13.3 | 14.3 | 400 | 5800 | 800 | 1600 | 50 | 0.23 |
8 | 5/16 | 8 | 8.5 | 12.5 | 13.3 | 14.5 | 15.5 | 350 | 5075 | 700 | 1400 | 55 | 0.25 |
10 | 3/8 | 9.5 | 10 | 15.1 | 15.9 | 17.1 | 18.1 | 330 | 4785 | 660 | 1320 | 65 | 0.34 |
12.5 | 1/2 | 12.5 | 13 | 18.2 | 19 | 20.3 | 21.3 | 275 | 3990 | 550 | 1100 | 90 | 0.42 |
16 | 5/8 | 15.8 | 16.5 | 21.6 | 22.6 | 23.6 | 24.8 | 250 | 3625 | 500 | 1000 | 100 | 0.7 |
19 | 3/4 | 19 | 19.7 | 25.3 | 26.3 | 27.6 | 28.8 | 215 | 3120 | 430 | 860 | 120 | 0.87 |
25 | 1 | 21.8 | 22.6 | 32.4 | 33.6 | 34.6 | 35.8 | 165 | 2390 | 330 | 660 | 150 | 1.22 |
31.5 | 1-1/4 | 32 | 32.8 | 40.4 | 41.6 | 42.6 | 43.8 | 125 | 1813 | 250 | 500 | 210 | 1.54 |
Manufacture hoses that meet or exceed SAE 100R16 hydraulic hose. If you do not find your specified technical data in the table below, please send us your specified technical data.
A controlled production process from raw materials to final shipment helps ensure consistent quality and reliable batch performance.
Manufactured to SAE J517 and ISO 11237 R16 standards with full batch traceability
100% proof pressure tested at 2× working pressure before shipment
Impulse tested to 200,000+ cycles under cyclic loading
Direct replacement for SAE 100R2AT with smaller OD and tighter bend radius
OEM branding, custom cover colors and private-label packaging available
Stable lead times from Hengshui factory with monthly capacity for repeat orders
Technical Specifications
Internal Hose | Oil resistant synthetic rubber (NBR). |
|---|---|
Reinforcement | Two high tensile steel wire braids. |
Cover | Oil and weather resistant synthetic rubber, wrapped/smooth cover. |
Application | Petroleum-based hydraulic fluid, water-based hydraulic fluids, water, diesel fuels, lubricating oils, glycol, mineral oils, and more. |
Temperature | -40°C to +100°C (-55°C to +100°C, intermittent 120°C). |
Working Pressure | 125 – 400 Bar / 1813 – 5800 Psi. |
Quality Assurance & Global Supply
Send us your specifications - size, length, pressure rating, quantity and destination port. Our sales engineer will respond within 4 business hours with a quotation, datasheet and lead time.
