Hydraulic hoses are essential components in fluid power systems used in construction machinery, agricultural equipment, industrial machinery and other hydraulic applications. They transfer hydraulic fluid between components while accommodating equipment movement, vibration and changes in operating conditions.Choosing the right hydraulic hose is important for system compatibility, operational reliability and service life. An unsuitable hose may lead to premature wear, leakage or unexpected downtime.
At ZHONGXU, we manufacture hydraulic hoses for a range of industrial applications, including wire braided hoses, spiral hoses and fiber-reinforced hoses. Understanding the key selection factors can help distributors, equipment manufacturers and maintenance professionals identify suitable hose specifications for their requirements.
Working pressure is one of the most important factors when selecting a hydraulic hose. The hose must have a rated working pressure suitable for the hydraulic system under its intended operating conditions.Consider the system's normal operating pressure, pressure fluctuations and potential pressure surges. Do not select a hose based only on its appearance or outside diameter. Always check the manufacturer's rated working pressure for the specific hose size and model.
The hose assembly, including its fittings and connections, must also be suitable for the intended operating pressure.
The inner diameter (ID) of a hydraulic hose affects fluid flow velocity and overall system performance. An incorrectly sized hose may contribute to excessive pressure loss, heat generation or restricted flow.When selecting a hose, check the required inner diameter, overall length and connection dimensions. These details should match the equipment manufacturer's specifications and the requirements of the hydraulic circuit.For replacement applications, the original hose specifications can provide a useful starting point. However, confirm that the replacement hose meets the required pressure rating, construction and operating conditions rather than relying on size alone.
Hydraulic hoses operate under different temperature conditions depending on the equipment, hydraulic fluid and working environment.
Both the fluid temperature and ambient temperature should be considered. A hose that is suitable for one temperature range may not be appropriate for another.Before ordering, confirm the operating temperature range specified for the selected hose model. Also consider whether the hose will be exposed to external heat sources or significant temperature changes during operation.
The inner tube material must be compatible with the hydraulic fluid being used. Compatibility depends on the fluid composition, concentration, temperature and other operating conditions.Using an unsuitable hose material may result in swelling, hardening, softening or premature deterioration of the inner tube.
Provide the hydraulic fluid type when requesting a quotation or technical recommendation. If the application involves a special fluid, confirm compatibility with the hose manufacturer's technical documentation before placing an order.
Hydraulic hoses must be routed and installed according to the manufacturer's recommendations. The available installation space, connection positions, equipment movement and vibration can all affect hose selection.
Pay particular attention to the minimum bend radius. Bending a hose more tightly than permitted may damage its reinforcement or shorten its service life.
Avoid twisting the hose during installation, and ensure that the routing does not create unnecessary tension, abrasion or contact with sharp edges. For compact equipment or confined installation spaces, consider hose models designed for tighter routing requirements, provided their specifications meet the application needs.
Different hydraulic hose constructions are designed to meet different operating requirements. The appropriate choice depends on the required pressure rating, flexibility, installation conditions and applicable standard.

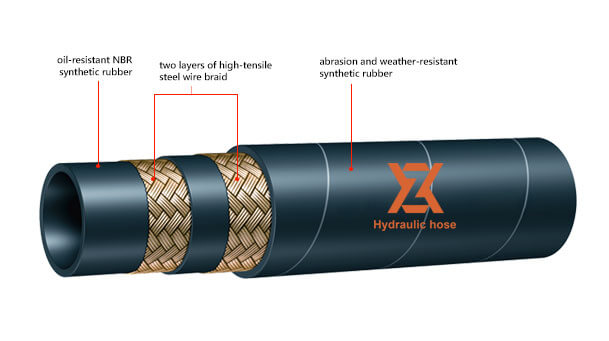

Wire braided hoses use steel wire braid reinforcement and are commonly used in a wide range of hydraulic systems. Depending on the specific model, they may be suitable for industrial machinery, construction equipment and agricultural equipment.When comparing braided hose models, check the applicable standard, hose size, working pressure, temperature range and minimum bend radius.
Wire spiral hoses use spiral steel wire reinforcement and are designed for demanding hydraulic applications when the selected model is rated for the required operating conditions.They are commonly considered for equipment and systems requiring high-pressure hose solutions. The exact pressure capability and application suitability depend on the hose model, size and construction.
Fiber-reinforced hoses use textile or other fiber reinforcement, depending on the product design. They may be suitable for certain lower-pressure hydraulic or fluid-transfer applications.Before selecting this type of hose, confirm its intended use, rated pressure, fluid compatibility and temperature limits.
Important: Never choose a hose based on construction type alone. Always verify the complete technical specifications for the intended application.
Hydraulic hose standards help define requirements for hose construction, dimensions, performance and testing. Buyers may encounter standards such as SAE and EN when sourcing hydraulic hoses for different markets and equipment.For example, SAE 100R1 and EN 853 1SN are designations associated with particular types of wire braided hydraulic hoses. However, similar-looking products should not automatically be treated as interchangeable.When requesting a quotation, specify the required standard and hose model whenever possible. If you are replacing an existing hose, provide its markings, technical datasheet or other available specifications for review.The hose, fittings and crimping specifications must also be compatible as a complete assembly.
Providing complete specifications helps suppliers evaluate your requirements and prepare a more accurate quotation.
Before contacting a hydraulic hose manufacturer, prepare the following information:
Hose type or standard: For example, SAE or EN specifications.
Inner diameter: The required hose size.
Working pressure: The pressure rating required by your application.
Operating temperature: The expected fluid and ambient temperature ranges.
Fluid type: The hydraulic oil or other medium being conveyed.
Hose length: The required length for each hose.
Fittings and connections: Connection type, thread details and assembly requirements, where applicable.
Order quantity: The quantity required for each model and size.
Branding requirements: Any hose marking, private-label or packaging requirements.
For replacement projects or customized orders, drawings, product markings and existing technical documents can help clarify the requirements. Final specifications should be confirmed before production.

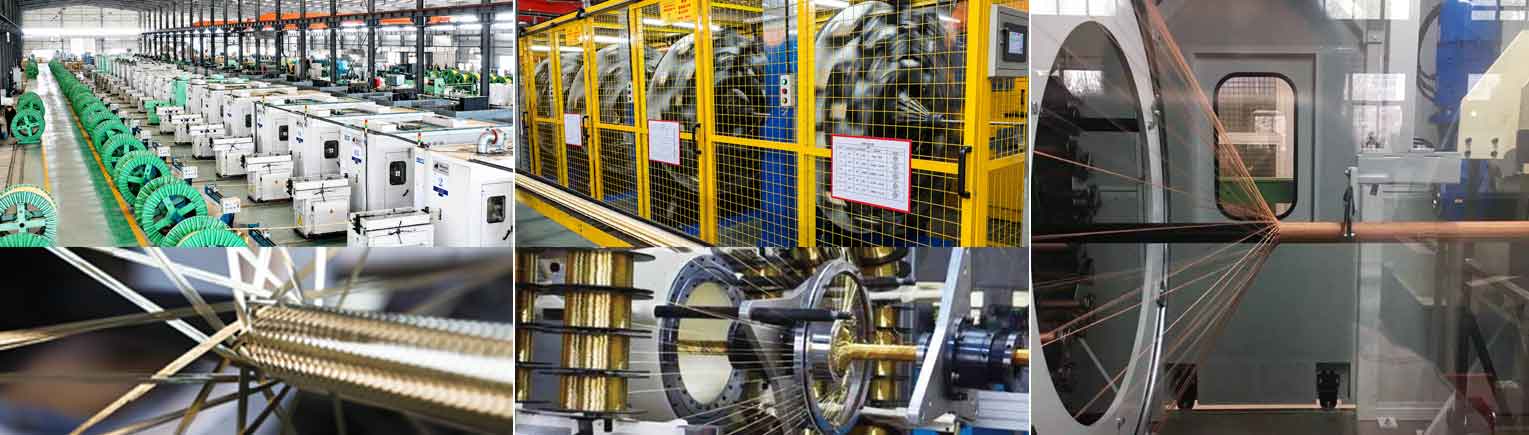

ZHONGXU manufactures hydraulic hoses for international industrial markets. Our product range includes wire braided hoses, wire spiral hoses and fiber-reinforced hoses for different application requirements.We understand that distributors, importers and equipment manufacturers may need different hose specifications depending on their markets and customers.When evaluating a potential supplier, buyers should review the relevant product datasheets, rated performance, quality documentation and production requirements for the hose models they intend to purchase.If you are sourcing hydraulic hoses for distribution, equipment manufacturing or replacement applications, providing your required standards, sizes and operating conditions is a practical first step toward identifying suitable products.
Check the required inner diameter, fluid flow requirements, working pressure and connection specifications. For replacement applications, verify the original hose specifications before ordering.
A replacement hose must meet the application's pressure, temperature, fluid compatibility and installation requirements. Also confirm fitting compatibility and the suitability of the complete hose assembly before use.
The main difference is their reinforcement construction. Braided hoses use braided reinforcement, while spiral hoses use spiral reinforcement. Their performance and suitable applications depend on the specific model and its rated specifications.
Provide the hose type, inner diameter, working pressure, operating temperature, fluid type, required length and order quantity. Include fitting details or drawings if you require complete hose assemblies.
You can contact ZHONGXU with your target standards, specifications, estimated order quantity and branding requirements for a review of your needs and production feasibility.
Choosing a suitable hydraulic hose starts with understanding your equipment requirements and confirming the correct technical specifications.
