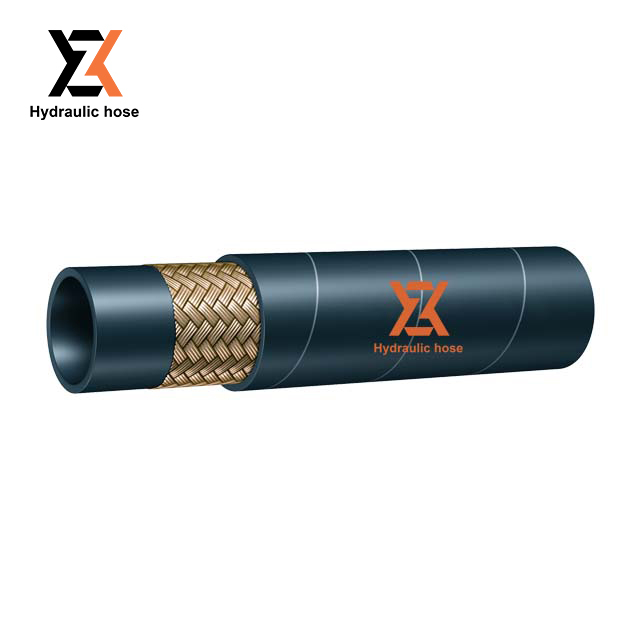

High Pressure Steel Wire Braided Rubber Hose

Hose Construction
Inner tube: oil resistant synthetic rubber
Reinforcement: two high tensile steel wire braids
Cover: oil, abrasion, weather resistant synthetic rubber
Working Temp.: -40℃ up to +121℃

Model:
SAE 100R2A

Quantity:
Availability:





Inquire Add to Basket

Product Description

FAQ

Applications

High pressure hydraulic oil lines used in the hydraulic system of multifunctional mining machinery and engineering machinery which use petroleum or water based hydraulic fluids.

Technical Parameters

I.D		W.D.	O.D	Working Pressure		P.P.	Burst Pressure	Min.B.R.	Weight
inch	mm	mm	mm	psi	bar	bar	bar	mm	kg/m
3/16	4.8-5.4	8.9-10.1	15.1-16.7	5075	350	700	1400	100	0.40
1/4	6.2-7.0	12.5-13.1	16.7-17.5	5075	350	700	1400	100	0.41
5/16	7.7-8.5	14.2-14.8	18.4-19.2	4307	297	594	1188	115	0.47
3/8	9.3-10.1	16.2-16.8	20.6-21.4	4060	280	560	1120	130	0.60
1/2	12.3-13.5	19.4-20.0	23.8-24.6	3553	245	490	980	180	0.70
5/8	15.5-16.7	22.8-23.4	27.0-27.8	2784	192	384	768	200	0.83
3/4	18.6-19.8	26.4-27.2	31.0-31.8	2277	157	314	628	240	1.02
1	25.0-26.4	33.9-34.7	38.3-39.1	2030	140	280	560	300	1.38
1-1/4	31.4-33.0	42.8-43.6	49.2-50.0	1639	113	226	452	420	2.23
1-1/2	37.7-39.3	49.2-50.0	55.7-56.5	1262	87	174	348	500	2.46
2	50.4-52.0	61.9-62.7	68.7-69.5	1131	78	156	312	630	3.14

Production Workshop

Fiber weaving

Steel wire winding

Wire braiding machine

Friction testing machine

High-speed joint venture

Storehouse

FAQ

Q1:What reinforcement and construction make this hose suitable for high-pressure hydraulic applications?

A1:

The hose features two high-tensile steel wire braids for reinforcement, an oil-resistant synthetic rubber inner tube, and an oil/abrasion/weather-resistant synthetic rubber cover. This double-braid design delivers exceptional strength and impulse resistance for high-pressure hydraulic oil lines, compliant with SAE 100R2A and multiple international standards (GB, DIN, RMA, AS, JIS, SABS), ensuring reliable performance in demanding mining and engineering machinery systems.

Q2:How do working and burst pressures scale with hose size for mining and engineering use?

A2:

Working pressure decreases as size increases to match flow and pressure needs:

Smaller sizes (3/16"–1/4"): 5075 PSI / 350 bar WP, 1400 bar BP (4:1 ratio)
Mid sizes (e.g., 1/2"): 3553 PSI / 245 bar WP, 980 bar BP
Larger sizes (2"): 1131 PSI / 78 bar WP, 156 bar BP Proof pressure is 2× WP across all sizes. This scaling supports high-pressure demands in multifunctional mining machinery while providing a strong safety margin against surges in petroleum or water-based hydraulic systems.

Q3:Why is the temperature range of -40°C to +121°C beneficial for this hose?

A3:

The wide operating temperature range (-40°C to +121°C) allows consistent performance in extreme conditions, from cold mining environments to hot engineering sites. The synthetic rubber materials resist thermal degradation, maintaining flexibility and sealing integrity for high-pressure hydraulic oil lines using petroleum or water-based fluids, reducing the risk of cracking or failure due to temperature fluctuations.

Q4:What customization options are available for specific mining or engineering machinery requirements?

A4:

Special specifications can be developed according to customer needs, including adjustments to sizes, lengths, reinforcement details, or other parameters while preserving SAE 100R2A compliance and compatibility with standards like GB, DIN, RMA, AS, JIS, and SABS. This enables tailored solutions for unique high-pressure hydraulic setups in mining machinery, engineering equipment, or specialized applications requiring petroleum or water-based fluid compatibility.
