SAE 100 R16
| Quantity: | |
|---|---|

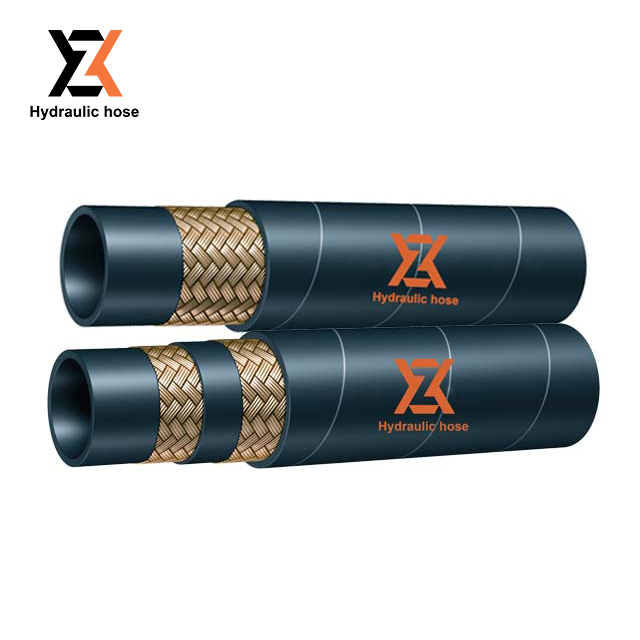

For industrial fluid system designers, compact equipment manufacturers, and high-flow hydraulic system operators, a hydraulic solution that balances large flow capacity, high pressure performance, and a compact footprint for tight installation spaces is a critical operational need. Our SAE 100 R16 hydraulic hose is engineered to meet and exceed SAE 100 R16 industry standards, delivering exceptional high-pressure, high-flow hydraulic performance in a compact, space-saving design. This hose features a seamless, oil-resistant black synthetic rubber inner tube, two layers of high-tensile steel wire reinforcement, and a premium synthetic rubber cover formulated to resist oil, weathering, abrasion, ozone, and corrosion. With an operating temperature range of -40℃ up to +100℃, it maintains consistent performance in extreme industrial and outdoor operating conditions, and is fully compatible with petroleum-based hydraulic fluids, water-based hydraulic fluids, lubrication oils, and oil emulsions. Unlike standard hydraulic hoses, this model is optimized for large inner diameter (ID) flow capacity in a compact outer diameter (OD) design, making it the ideal solution for applications where installation space is limited but high fluid flow is required.

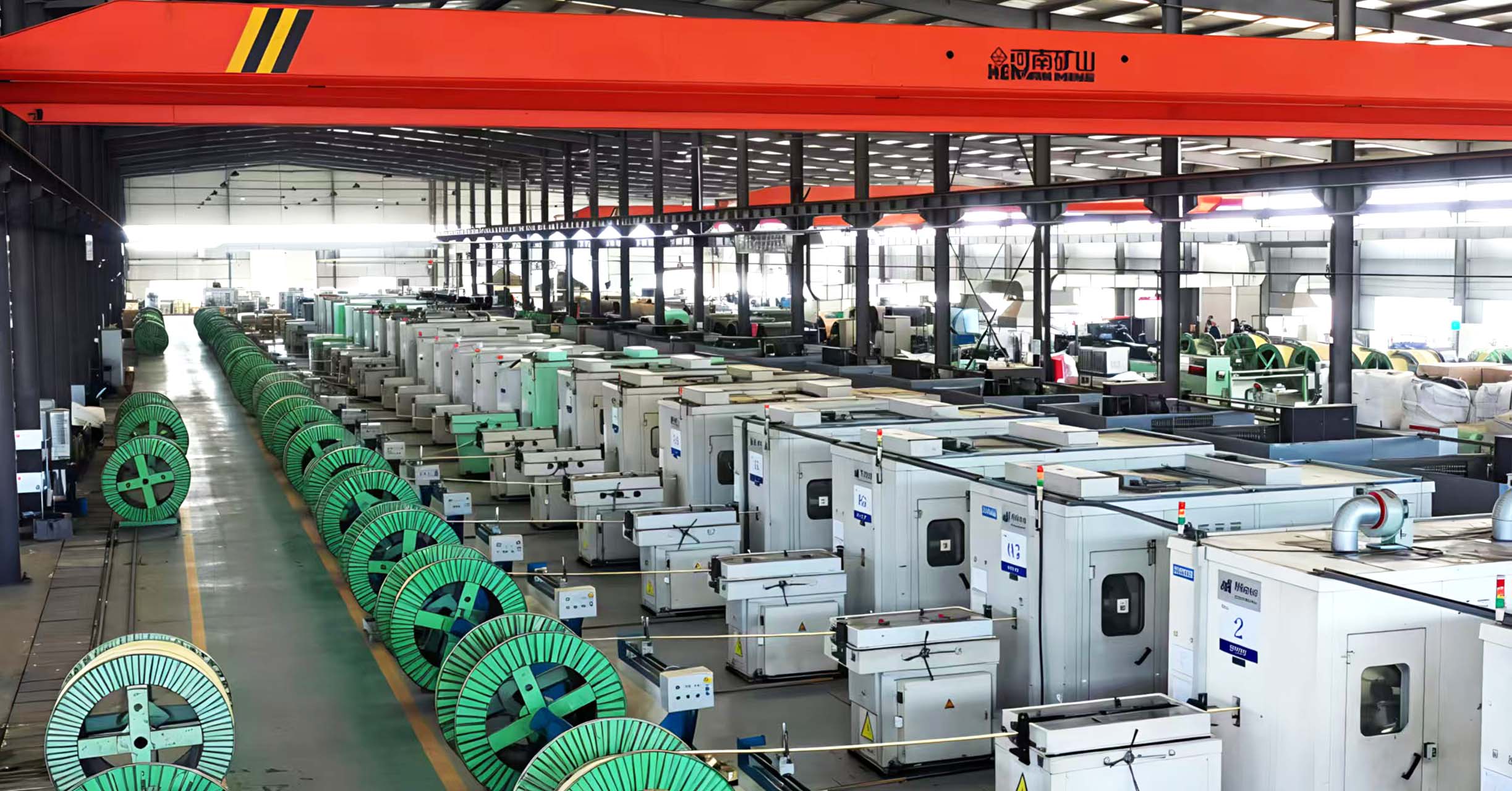

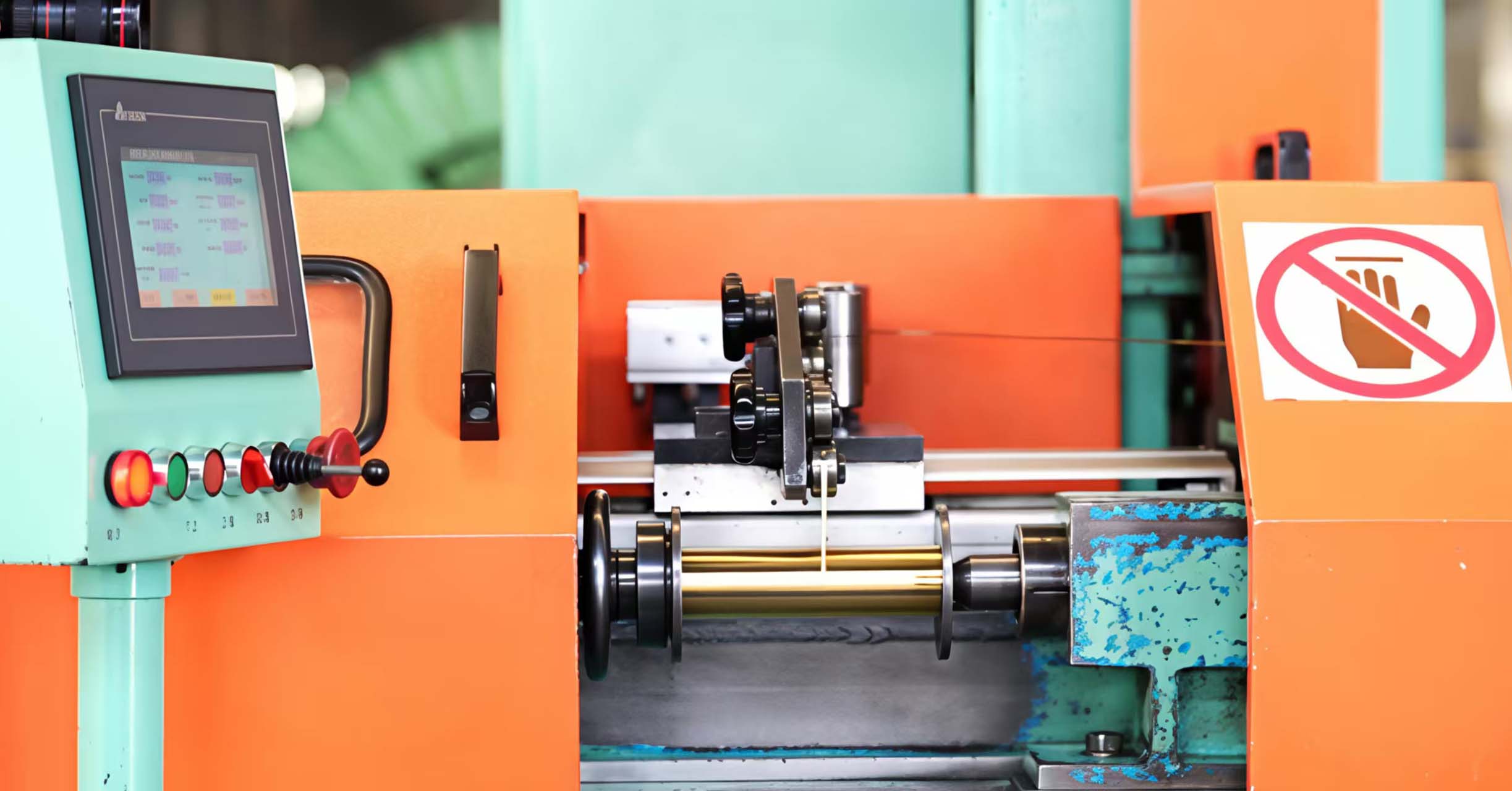

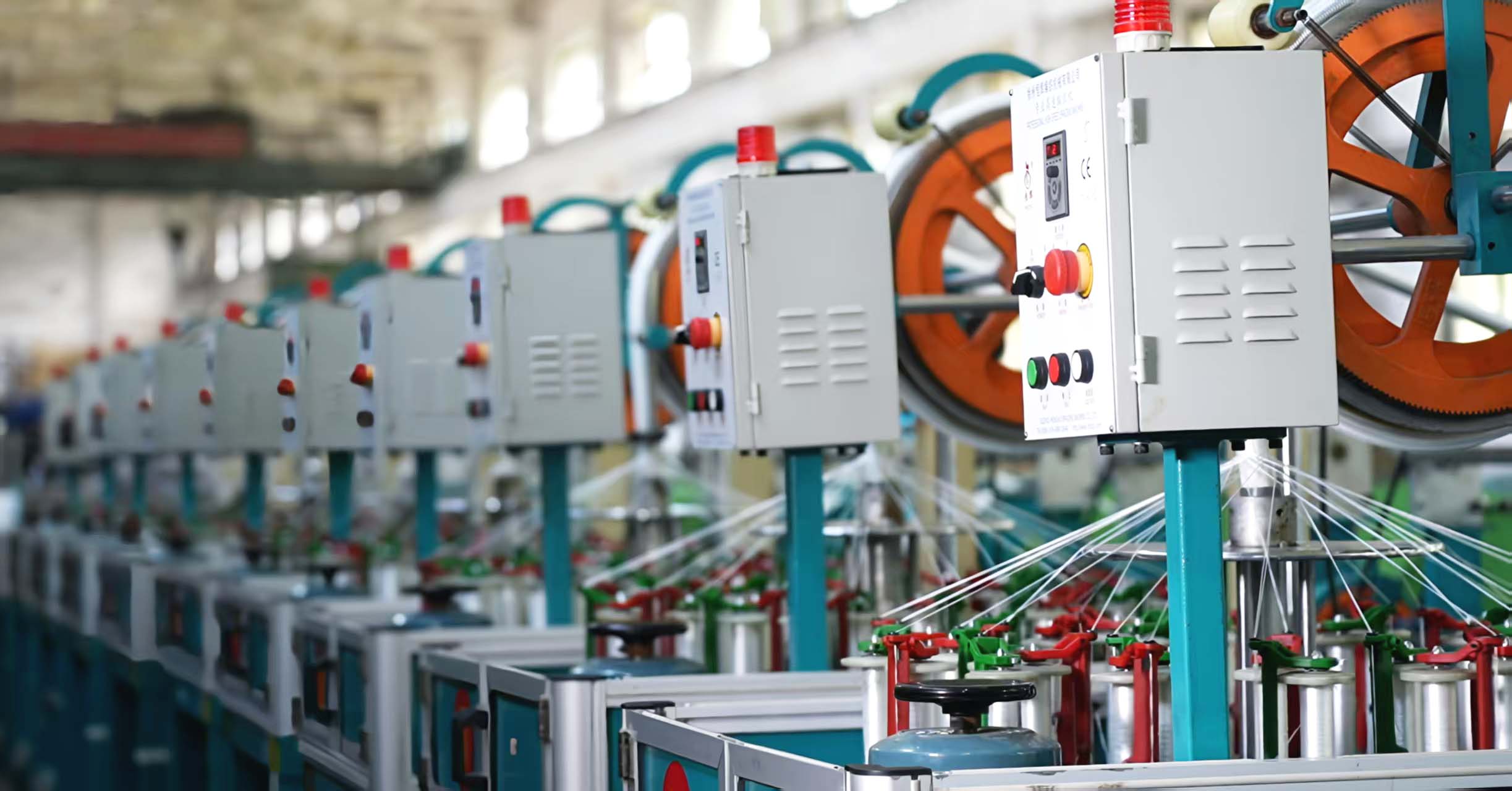

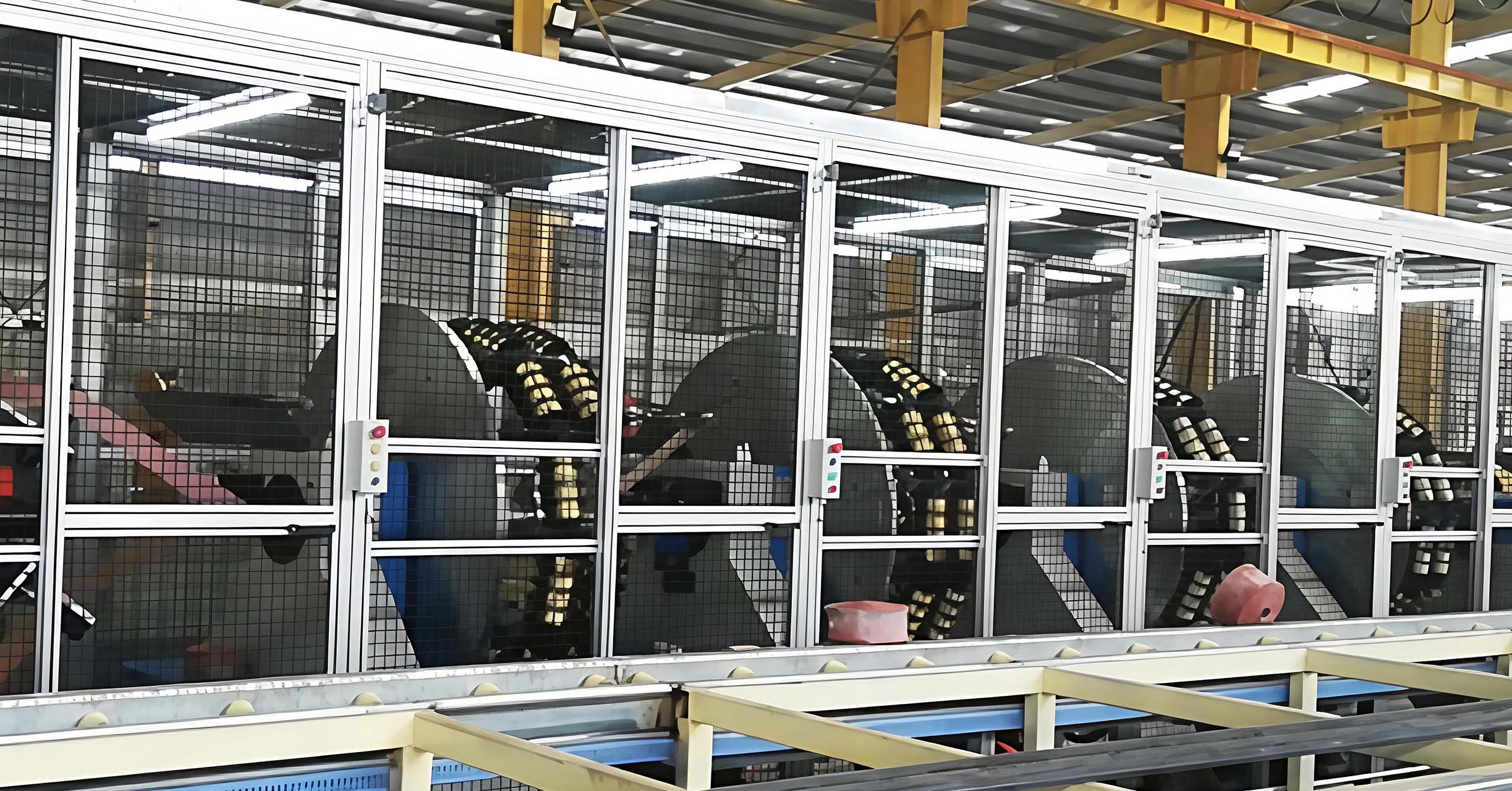

 Fiber weaving |  Steel wire winding |  Wire braiding machine |

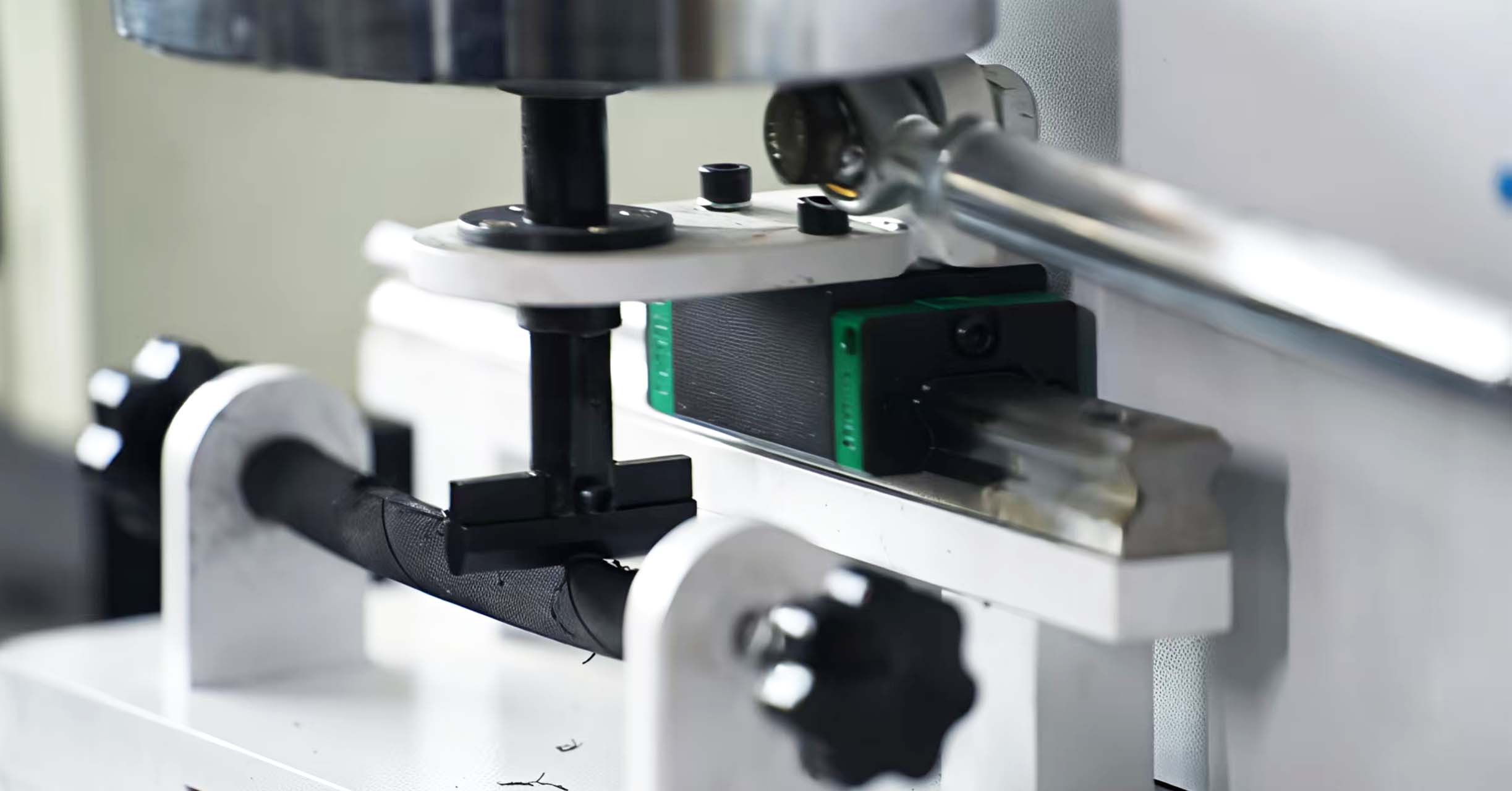

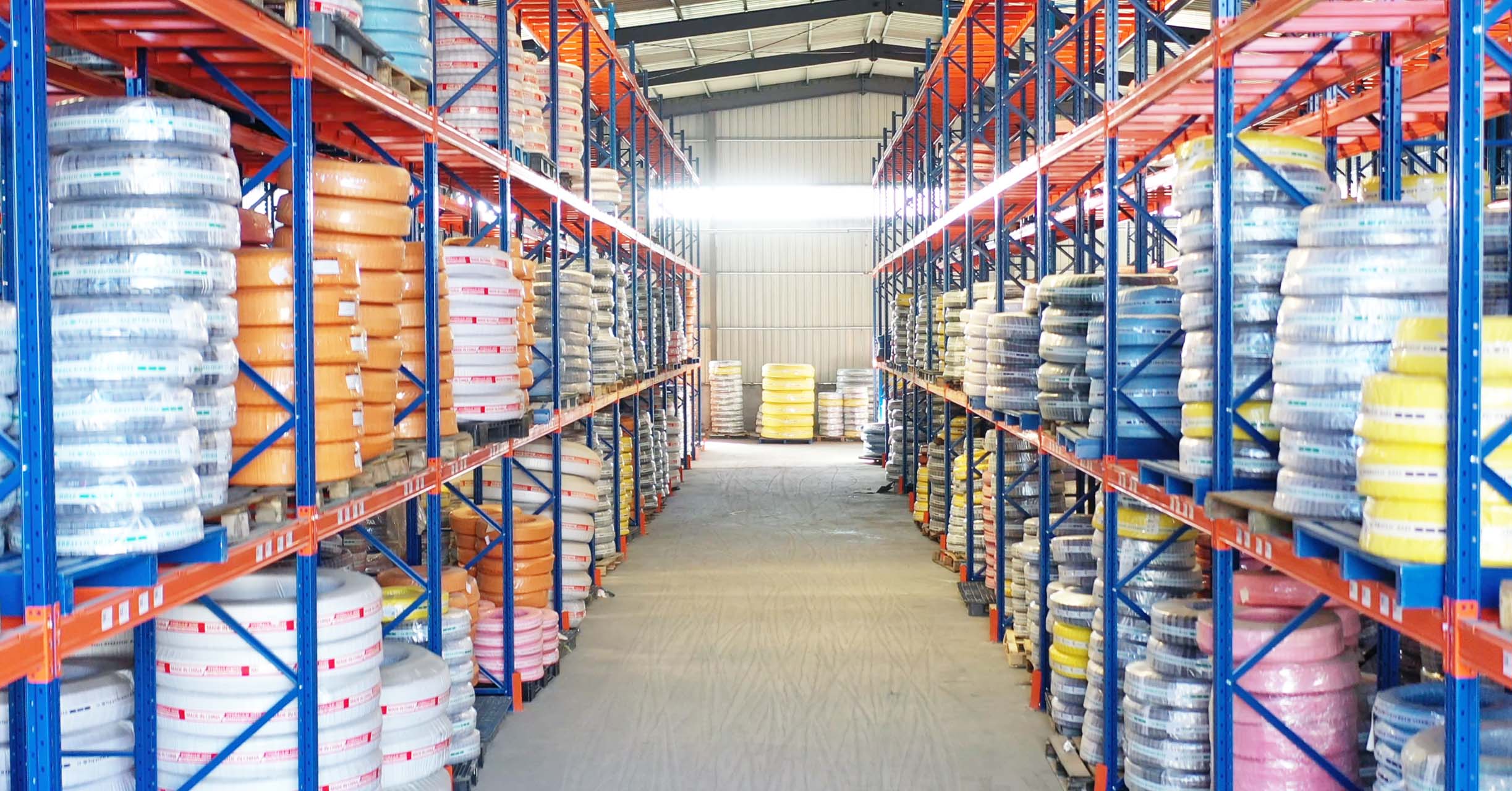

 Friction testing machine |  High-speed joint venture |  Storehouse |
The defining advantage of our SAE 100 R16 compact hydraulic hose is its innovative large-ID, compact-OD structure, engineered to maximize fluid flow capacity while minimizing installation footprint. The seamless synthetic rubber inner tube delivers a smooth, unrestricted flow path, reducing fluid turbulence and pressure drop for efficient high-volume fluid transfer, even at maximum working pressures up to 40 MPa (5800 psi). The two layers of high-tensile steel wire reinforcement provide exceptional structural strength for high-pressure operation, without adding unnecessary bulk to the hose body. This compact design allows for installation in tight equipment spaces where standard large-diameter hydraulic hoses cannot fit, making it the perfect choice for compact mobile equipment and space-constrained industrial hydraulic systems.
Built for long-term reliability in harsh industrial and outdoor operating environments, our large ID high flow hydraulic hose features a rugged, multi-layer construction that resists a wide range of environmental and operational stressors. The seamless oil-resistant inner tube prevents fluid degradation, leaks, and internal wear, even with continuous transfer of industrial fluids. The high-tensile steel wire reinforcement resists pressure surges, vibration, and mechanical stress, while the premium synthetic rubber outer cover delivers exceptional resistance to oil, abrasion, weathering, ozone, corrosion, and aging. Both wrapped and smooth surface finishes are available to meet specific application and installation requirements, providing additional versatility for commercial and industrial deployments.
Despite its large-ID and high-pressure design, our SAE 100 R16 high pressure hydraulic hose maintains exceptional flexibility and a size-optimized minimum bend radius, ranging from 50 mm for the 1/4" size up to 210 mm for the 1-1/4" diameter. This flexibility allows for easy, kink-free routing in compact equipment enclosures, tight engine compartments, and space-constrained industrial fluid systems, without compromising flow capacity or pressure performance. Adhering to the minimum bend radius guidelines prevents internal tube damage, stress on the steel wire reinforcement, and flow restrictions, extending the service life of the hose and reducing maintenance requirements for commercial operators.
This compact hydraulic hose for tight routing is purpose-built for compact mobile equipment, including compact construction machinery, utility vehicles, automated guided vehicles (AGVs), and mobile industrial equipment, where installation space is at a premium but high-pressure, high-flow hydraulic performance is required. Its compact design allows for easy routing in tight equipment frames and enclosures, while its large-ID structure delivers the fluid flow needed for lifting, steering, and implement operation in compact machinery.
Beyond mobile equipment, this hose excels in stationary industrial high-flow hydraulic systems, lubrication oil delivery lines, oil emulsion transfer systems, and general industrial fluid transfer applications. It is fully compatible with a wide range of industrial fluids, making it a versatile choice for production facilities, manufacturing plants, oil and gas operations, and industrial maintenance workshops. Its strict adherence to SAE 100 R16 standards makes it a trusted OEM specification and replacement part for industrial equipment manufacturers worldwide.
size | Standard | I.D | W.D | O.D | Max W.P | Min B.P | Min B.P | W.T | ||||
Dash | mm | inch | Min | Max | Max | max | MPa | Psi | MPa | mm | kg/m | |
06R16 | -4 | 6.3 | 1/4 | 6.5 | 6.9 | 12.3 | 14.3 | 40.0 | 5800 | 160 | 50 | 0.23 |
08R16 | -5 | 8 | 5/16 | 8 | 8.5 | 13.3 | 15.5 | 35.0 | 5075 | 140 | 55 | 0.25 |
10R16 | -6 | 10 | 3/8 | 9.5 | 10 | 15.9 | 18.1 | 33.0 | 4785 | 132 | 65 | 0.34 |
13R16 | -8 | 12.5 | 1/2 | 12.5 | 13 | 19 | 21.3 | 27.5 | 3990 | 110 | 90 | 0.42 |
16R16 | -10 | 16 | 5/8 | 15.8 | 16.5 | 22.6 | 24.8 | 25.0 | 3625 | 100 | 100 | 0.70 |
19R16 | -12 | 19 | 3/4 | 19 | 19.7 | 26.3 | 28.8 | 21.5 | 3120 | 86 | 120 | 0.87 |
25R16 | -16 | 25 | 1 | 21.8 | 22.6 | 33.6 | 35.8 | 16.5 | 2390 | 66 | 150 | 1.22 |
32R16 | -20 | 31.5 | 1-1/4 | 32 | 32.8 | 41.6 | 43.8 | 12.5 | 1813 | 50 | 210 | 1.54 |
