Steel curtain wire reinforced high-pressure wear-resistant composite hose

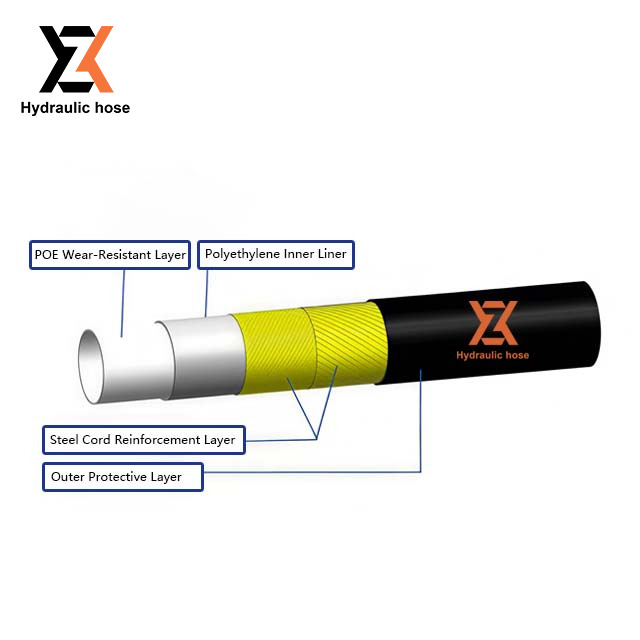

Structure:
The abrasion-resistant composite hose has a multi-layer structure. From the inside out, it mainly consists of an abrasion-resistant inner layer, a steel cord reinforcement layer, and an outer protective layer.

Quantity:
Availability:





Inquire Add to Basket

Product Description

FAQ

Applications

Tailings transportation、Concentrate transportation、Mine slurry recycling、Oilfield abrasion-resistant pipelines、Salt and brine chemical applications、Shale gas fracturing return flow、Liquid abrasion-resistant pipelines

Features

Abrasion-resistant、Corrosion-resistant、High-pressure resistant、Smooth inner wall、High fluid transportation efficiency、Impact-resistant、Coilable、Fewer joints、Lightweight Quick installation

Technical Parameters

Nominal diameter DN (mm)	nominal pressure (MPa)	submersant layer thickness (mm)	outer diameter (mm)	wall thickness (mm)	whether coiled	weight (kg/m)
90	25	3	135	23	√	7.17
	20	3	135	23	√	7.17
	20	3	135	23	√	7.17
	12	3	137	18	√	5.47
	10	3	125	18	√	5.47
	8	3	125	18	√	5.47
	6.4	3	125	18	√	5.47
	4	3	125	18	√	5.47
	2.5	3	125	18	√	5.47
100	25	3	147	24	√	8.27
	20	3	147	24	√	8.27
	16	3	147	24	√	8.27
	12	3	137	19	√	6.39
	10	3	137	19	√	6.39
	8	3	137	19	√	6.39
	6.4	3	137	19	√	6.39
	4	3	137	19	√	6.39
	2.5	3	137	19	√	6.39
125	25	3	173	24	√	10.28
	20	3	173	24	√	10.28
	16	3	173	24	√	10.28
	12	3	173	24	√	10.28
	10	3	163	19	√	10.28
	8	3	163	19	√	8
	6.4	3	163	19	√	8
	4	3	163	19	√	8
	2.5	3	163	19	√	8
150	25	3	210	30	√	15.32
	20	3	200	25	√	12.64
	16	3	200	25	√	12.64
	12	3	200	25	√	12.64
	10	3	200	25	√	12.64
	8	3	190	20	√	9.96
	6.4	3	190	20	√	9.96
	4	3	190	20	√	9.96
	2.5	3	190	20	√	9.96
170	20	3	230	30	√	17.04
	16	3	220	25	√	14.08
	12	3	220	25	√	14.08
	10	3	220	25	√	14.08
	8	3	210	20	√	11.12
	6.4	3	210	20	√	11.12
	4	3	210	20	√	11.12
	2.5	3	210	20	√	11.12
200	16	3	250	25	√	16.28
	12	3	250	25	√	16.28
	10	3	250	25	√	16.28
	8	3	240	20	√	12.89
	6.4	3	240	20	√	12.89
	4	3	240	20	√	12.89
	2.5	3	240	20	√	12.89
225	12	3	276	26	√	18.52
	10	3	276	26	√	18.52
	8	3	266	21	√	14.74
	6.4	3	266	21	√	14.74
	4	3	266	21	√	14.74
	2.5	3	266	21	√	14.74
250	10	3	301	26	×	20.38
	8	3	301	26	×	20.38
	6.4	3	291	21	×	16.24
	4	3	291	21	×	16.24
	2.5	3	291	21	×	16.24
300	10	4	335	28	×	26.18
	8	4	335	28	×	26.18
	6.4	4	345	23	×	21.24
	4	4	345	23	×	21.24
	2.5	4	345	23	×	21.24
350	8	4	405	28	×	30.18
	6.4	4	405	28	×	21.24
	4	4	395	23	×	30.18
	2.5	4	395	23	×	24.53
400	6.4	4	471	36	×	44.72
	4	4	461	31	×	38.27
	2.5	4	451	26	×	31.81

Production Workshop

Fiber weaving

Steel wire winding

Wire braiding machine

Friction testing machine

High-speed joint venture

Storehouse

FAQ

Q1: What is this hose designed for?

A1: This is a specialized heavy-duty hose built to withstand ultra-high pressures and severe abrasive wear. Its core strength comes from a reinforcement layer of wound or braided high-tensile steel cords, protected by an exceptionally abrasion-resistant outer cover made of materials like Ultra-High Molecular Weight Polyethylene .

Q2: Where is it typically applied?

A2: Its main applications include handling abrasive media (slurries, granules) in mining, demanding dredging projects, and powering ultra-high-pressure hydraulic systems in heavy-duty construction and industrial equipment.

Q3: What standards do your products comply with?

A3: All hoses comply with GB, DIN, RMA, AS, JIS, SABS, and other standards. We also develop special specifications according to customer requirements.

Q4: Can We Produce Custom Rubber Hoses?

A4: Yes, we offer custom hose solutions based on your specific needs, including different sizes, lengths, reinforcements, and materials to meet the unique demands of your application.
