The DIN EN857 2SC hydraulic hose is a double wire braid reinforced compact rubber hose designed for medium-to-high pressure hydraulic applications where installation space is limited. The tube is made of oil-resistant NBR synthetic rubber, reinforced with two high-tensile steel wire braids, and covered with oil and weather resistant synthetic rubber. It is widely used for construction machinery, mining equipment and industrial hydraulic systems with tight routing requirements.
Sinopulse produces 2SC hoses strictly to EN 857 and ISO 11237 standards, with 100% proof pressure testing on every batch.
Key Features

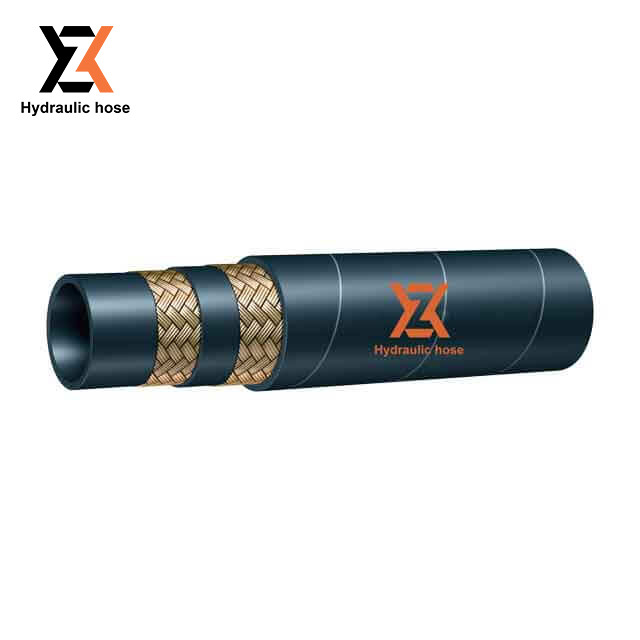

Inner tube: oil resistant synthetic nitrile rubber
Reinforcement: two layers of high-tensile steel wire braid
Cover: abrasion and weather-resistant synthetic rubber
Applications
Ideal for:
Construction machinery hydraulic lines
Agricultural equipment
Industrial hydraulic systems
Material handling equipment
Mining support equipment
Hydraulic Hose DIN EN857 2SC Recommended For:
Medium-to-high pressure hydraulic hoses with limited installation space. Meets or exceeds the requirements of EN 857 Type 2SC and ISO 11237 Type 2SC.
Hydraulic Hose DIN EN857 2SC Application Fields:
Mine hydraulic support, oilfield extraction machinery, mine/road/construction machinery.
INNER TUBE: oil resistant synthetic nitrile rubber
REINFORCEMENT: double layer of steel wire braided
COVER: Black, oil resistant, synthetic rubber
SURFACE: wrapped surface, smooth surface
Hydraulic Hose DIN EN857 2SC TEMPERATURE RANGE: -40℃ (-40℉) to +100℃ (+212℉), intermittent 120℃
Standard: EN 857 2SC / ISO 11237 2SC
SIZE | I.D | W.D | O.D | W.P | P.P | B.P | Min.B.R. | Weight | ||
mm | inch | mm | mm | mm | Bar | psi | Bar | Bar | mm | kg/m |
6 | 1/4 | 6.4 | 11.5 | 13.5 | 400 | 5800 | 800 | 1600 | 75 | 0.28 |
8 | 5/16 | 7.9 | 13.0 | 14.7 | 350 | 5075 | 700 | 1400 | 85 | 0.33 |
10 | 3/8 | 9.5 | 15.2 | 17.2 | 330 | 4785 | 660 | 1320 | 90 | 0.42 |
13 | 1/2 | 12.7 | 18.5 | 20.5 | 275 | 3990 | 550 | 1100 | 130 | 0.52 |
16 | 5/8 | 15.9 | 21.8 | 23.8 | 250 | 3625 | 500 | 1000 | 150 | 0.61 |
19 | 3/4 | 19.0 | 25.4 | 27.6 | 215 | 3120 | 430 | 860 | 180 | 0.79 |
25 | 1 | 25.4 | 33.0 | 35.4 | 165 | 2390 | 330 | 660 | 230 | 1.1 |
32 | 1-1/4 | 31.8 | 40.0 | 43.5 | 150 | 2175 | 300 | 600 | 315 | 1.5 |
Manufacture hoses that meet or exceed EN857 2SC. If you do not find your specified technical data in the table below, please send us your specified technical data.
A controlled production process from raw materials to final shipment helps ensure consistent quality and reliable batch performance.
Why Choose This Product
Manufactured to EN 857 and ISO 11237 standards with full batch traceability
100% proof pressure tested at 2× working pressure before shipment
Impulse tested to 1,000,000+ cycles under cyclic loading
OEM branding, custom cover colors and private-label packaging available
Low MOQ for sampling and rapid scale-up to container quantities
Stable lead times from Hengshui factory with monthly capacity for repeat orders
Technical Specifications
Internal Hose | Oil resistant synthetic rubber (NBR) |
|---|---|
Reinforcement | Two layers of high-tensile steel wire braid. |
Cover | Oil, abrasion and weather-resistant synthetic rubber. Black color. Wrapped or smooth surface. |
Application | Petroleum-based hydraulic fluid, water-based hydraulic fluids, water, diesel fuels, lubricating oils, glycol, mineral oils, and more. |
Temperature | -40°C to +100°C |
Working Pressure | 150 – 400 Bar / 2175 – 5800 Psi. |
