Product Overview
The SAE 100R6 hydraulic hose is a textile braid reinforced rubber hose designed for low pressure and return lines. The tube is made of oil-resistant synthetic rubber, reinforced with one layer of braided textile, and covered with abrasion and oil-resistant synthetic rubber. It is lightweight and flexible, and is widely used for hydraulic low pressure, return and drain oil lines in agriculture, industrial and general purpose applications.
Zhongxu, a professional hydraulic hose manufacturer, produces 100R6 hoses to SAE J517, ISO 4079 R6 and EN 854 R6 standards, with 100% proof pressure testing on every batch.

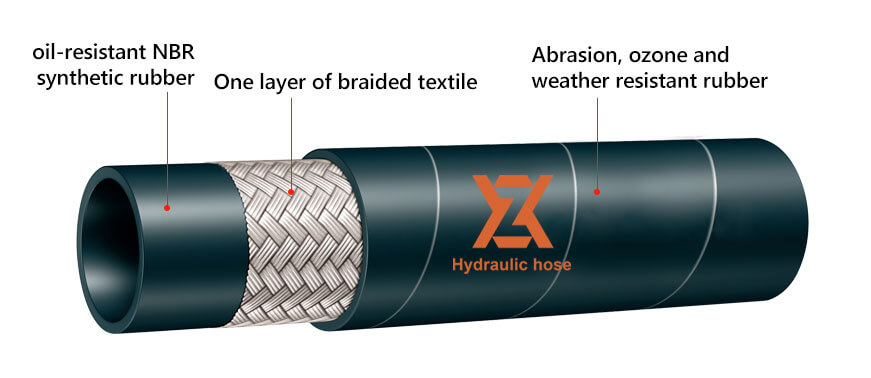

Inner Tube: Oil-resistant synthetic rubber. Resistant to oil, abrasion and corrosion.
Reinforcement: One layer of braided textile reinforcement.
Cover: Abrasion and oil-resistant synthetic rubber. Resistant to abrasion, corrosion, weather, ozone, cut, aging and sunlight. Black color. Wrapped or smooth surface.
Ideal for:
Hydraulic low pressure lines
Return and drain oil lines
Agricultural equipment
Industrial and general purpose equipment
Oil and gas, offshore and onshore
Water treatment and HVAC
Hydraulic Hose SAE 100R6 Recommended For:
Low pressure hydraulic hoses and return lines. Meets or exceeds the requirements of SAE 100R6, ISO 4079 R6 and EN 854 R6.
Hydraulic Hose SAE 100R6 Application Fields:
Agriculture, chemical, defence force, general purpose industrial, HVAC, industrial and power, offshore, oil & gas, onshore, petroleum, transportation, water treatment.
INNER TUBE: oil-resistant synthetic rubber
REINFORCEMENT: one layer of braided textile
COVER: Black, abrasion and oil-resistant synthetic rubber
SURFACE: wrapped surface, smooth surface
Hydraulic Hose SAE 100R6 TEMPERATURE RANGE: -40℃ (-40℉) to +100℃ (+212℉), intermittent 125℃
Standard: SAE 100R6 / ISO 4079 R6 / EN 854 R6
Suitable Fitting: SAE 100R6 field-attachable fittings. Ferrule: No-skive Type PUSH-ON-R6/1TE. Insert: PUSH-ON-R6/1TE.
I.D | O.D | W.P | B.P | B.R | Weight | |||
inch | mm | mm | Bar | psi | Bar | psi | mm | kg/m |
3/16 | 4.5-5.4 | 10.3-11.9 | 35 | 510 | 140 | 2030 | 50 | 0.11 |
1/4 | 6.1-7.0 | 11.9-13.5 | 28 | 410 | 112 | 1620 | 65 | 0.13 |
5/6 | 7.6-8.5 | 13.5-15.1 | 28 | 410 | 112 | 1620 | 75 | 0.15 |
3/8 | 9.2-10.1 | 15.1-16.7 | 28 | 410 | 112 | 1620 | 75 | 0.18 |
1/2 | 12.4-13.5 | 19.0-20.6 | 28 | 410 | 112 | 1620 | 100 | 0.26 |
5/8 | 15.6-16.7 | 22.2-23.8 | 24 | 350 | 98 | 1420 | 125 | 0.31 |
3/4 | 18.7-19.8 | 25.4-27.8 | 21 | 310 | 84 | 1220 | 150 | 0.40 |
Manufacture hoses that meet or exceed SAE 100R6 hydraulic hose. If you do not find your specified technical data in the table below, please send us your specified technical data.
A controlled production process from raw materials to final shipment helps ensure consistent quality and reliable batch performance.
Manufactured to SAE J517, ISO 4079 R6 and EN 854 R6 standards with full batch traceability
100% proof pressure tested at 2× working pressure before shipment
Lightweight and flexible for easy installation in low pressure and return lines
Oil, abrasion, weather and aging resistant cover for longer service life
Compatible with SAE 100R6 field-attachable fittings, no-skive PUSH-ON-R6/1TE
MSHA, ISO 9001, ISO 14001, ISO 45001, SGS, and MA approved
Stable lead times from Hengshui factory with monthly capacity for repeat orders
Technical Specifications
Internal Hose | Oil resistant synthetic rubber (NBR). |
|---|---|
Reinforcement | One layer of braided textile. |
Cover | Oil, abrasion and weather resistant synthetic rubber, wrapped/smooth cover. |
Application | Petroleum-based hydraulic fluid, water-based hydraulic fluids, water, diesel fuels, lubricating oils, glycol, mineral oils, and more. |
Temperature | -40°C to +100°C (-40°F to +212°F), intermittent 125°C. |
Working Pressure | 21 – 35 Bar / 310 – 510 Psi. |
Quality Assurance & Global Supply
Send us your specifications - size, length, pressure rating, quantity and destination port. Our sales engineer will respond within 4 business hours with a quotation, datasheet and lead time.
