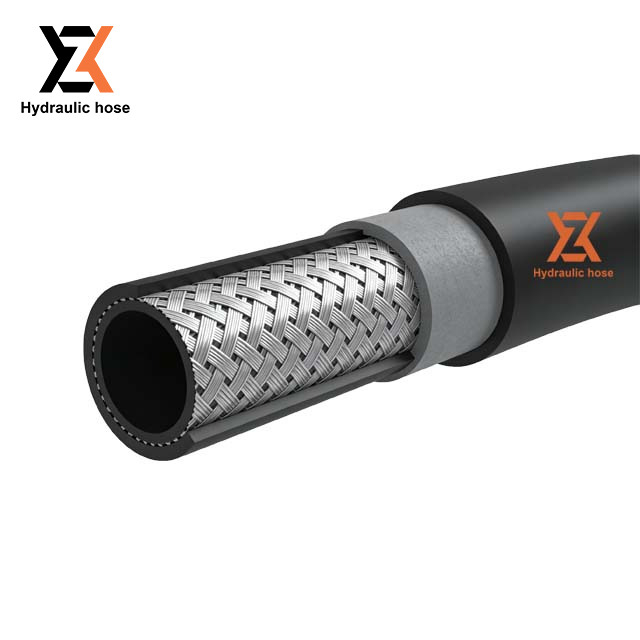

Hydraulic brake rubber hose

Structure: EPDM/synthetic fiber braided layer/medium glue layer/synthetic fiber braided layer/EDM
Medium: Polar brake fluid (non-petroleum-based)
Temperature: -40°C～+150°C

Quantity:
Availability:





Inquire Add to Basket

Product Description

FAQ

Applications

In the car brake system, connect the brake pump and brake caliper

Standard

Meet the standards of GB16897, FMVSS106, SAEJ1401, ISO3996 and major OEMs at home and abroad

Technical Parameters

Standard	ID	OD	MAX W.P Mpa	MIN B.P Mpa	MIN B.R mm	MAX SWELL
						ml/m
						6.9Mpa	10.3Mpa	20Mpa
3310	3	10	10	70	38	≤0.45	≤0.55	≤1.10
5001	3	10	10	70	38	≤0.45	≤0.55	≤1.10
5002	3	10	10	70	38	≤0.45	≤0.55	≤1.10
5011	3	10	10	70	38	≤0.35	≤0.50	≤1.05

Production Workshop

Fiber weaving

Steel wire winding

Wire braiding machine

Friction testing machine

High-speed joint venture

Storehouse

FAQ

Q1: What is a hydraulic brake hose?

A1: Brake hose means a flexible conduit, other than a vacuum tubing connector, manufactured for use in a brake system to transmit or contain the fluid pressure or vacuum used to apply force to a vehicle's brakes.

Q2: What standards do your products comply with?

A2: All hoses comply with GB, DIN, RMA, AS, JIS, SABS, and other standards. We also develop special specifications according to customer requirements.

Q3: Do you accept small orders?

A3: Yes. Please feel free to contact us. To better serve customers and expand cooperation opportunities, we accept small orders.

Q4: Do you provide free samples?

A4:Yes. Since our establishment, we have followed a free sample policy. We believe there is no “best” product—only the most suitable one. Samples are essential for customers and for maintaining our brand reputation.
