SAE 100 R17 Compact High Pressure Hydraulic Hose | Large Bore, Extreme Pressure Rating

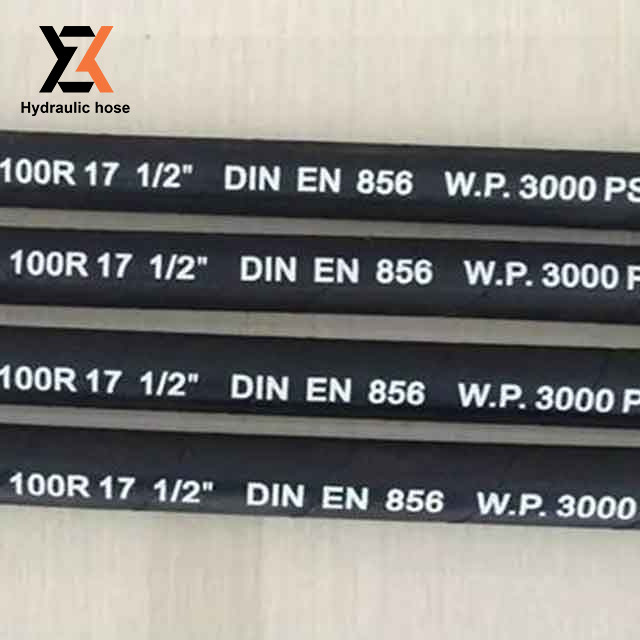

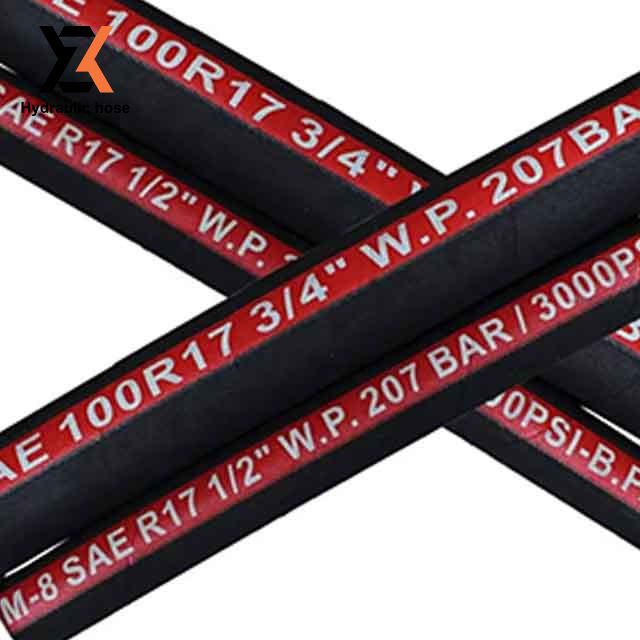

SAE 100 R17 | Compact Type Wire Braided Hydraulic Hose

SAE 100 R17 | Compact Type Wire Braided Hydraulic Hose

One-and-two-wire braid compact hydraulic hose with constant 21 MPa working pressure for tight routing applications.

Quick Specifications
Internal Hose: Oil resistant synthetic rubber (NBR).
Reinforcement: One or Two Wire Steel Braid: One wire high tensile steel braid in sizes 1/4 through 1/2". Two wire high tensile steel braid in sizes 5/8-1".
Cover: Oil and weather resistant synthetic rubber, wrapped/smooth cover.
Application: Petroleum-based hydraulic fluid, water-based hydraulic fluids, water, diesel fuels, lubricating oils, glycol, mineral oils, and more.
Temperature: -40°C to +100°C (-40°F to +212°F), intermittent 120°C.
Working Pressure: Constant 21 MPa / 210 Bar / 3045 Psi across all sizes.
Standard: SAE 100R17 / ISO 11237 R17.

SAE / DIN / EN Standards 100% Proof Tested
OEM Branding Available MOQ Flexible


Availability:



Contact Us Whatsapp

Product Description

FAQ

Contact Us

Hydraulic Hose Manufacturer

Reliable Hydraulic Hose Solutions for Global Industrial Applications

㎡

Company coverage area

+

Exporting countries and regions

+Million m

Annual Production Capacity

Product Overview

The SAE 100R17 hydraulic hose is a compact wire braid reinforced rubber hose designed for high-pressure hydraulic applications with tight bend radius requirements. The tube is made of oil-resistant NBR synthetic rubber, reinforced with one or two high-tensile steel wire braids, and covered with oil and weather resistant synthetic rubber. It maintains a constant working pressure of 21 MPa across all sizes, with a significantly tighter bend radius than SAE 100R1 hose. It is widely used as a direct replacement for SAE 100R1AT / EN853 1SN hydraulic hose in construction machinery, agricultural equipment and industrial hydraulic systems with limited installation space.

Zhongxu produces 100R17 hoses strictly to SAE J517 and ISO 11237 R17 standards, with 100% proof pressure testing on every batch.

Key Features

Constant 21 MPa (3045 Psi) working pressure across all sizes, no pressure drop as size increases

One wire high tensile steel braid in sizes 1/4 through 1/2". Two wire high tensile steel braid in sizes 5/8-1".

Significantly tighter bend radius than SAE 100R1 hose, down to 1-1/2" for small sizes

Direct replacement for SAE 100R1AT hose with smaller OD and lighter weight

Oil-resistant NBR inner tube compatible with hydraulic fluids and lubricating oils

Fully compliant with SAE 100R17 and ISO 11237 R17

Hose Structure

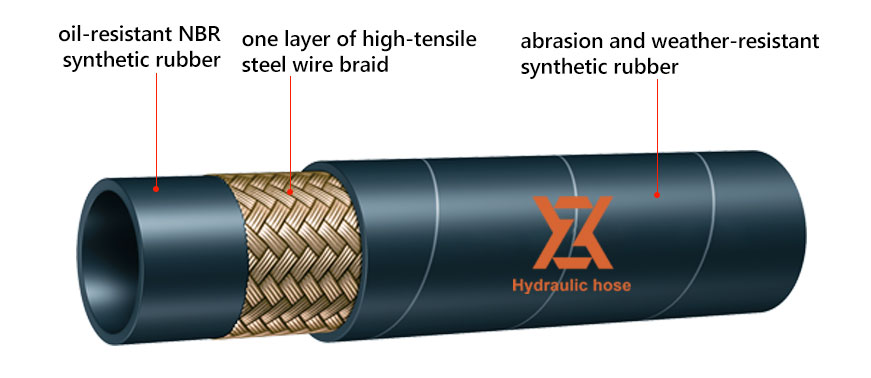

Inner Tube: Oil-resistant NBR synthetic rubber.

Reinforcement: one layer or two braided layers of high tensile braided steel wire

Cover: Oil, abrasion and weather-resistant synthetic rubber. Black color. Wrapped or smooth surface.

Applications

Ideal for:

Construction machinery hydraulic lines
Agricultural equipment
Industrial hydraulic systems
Material handling equipment
Mining support equipment

Hydraulic Hose SAE 100R17 Recommended For:

High-pressure hydraulic hoses with tight bend radius requirements. Meets or exceeds the requirements of SAE 100R17 and ISO 11237 R17.

Hydraulic Hose SAE 100R17 Application Fields:

Mine hydraulic support, oilfield extraction machinery, mine/road/construction machinery.

INNER TUBE: oil resistant synthetic nitrile rubber

REINFORCEMENT: one layer of steel wire braided (1/4", 3/8", 1/2"); two layers of steel wire braided (5/8", 3/4", 1")

COVER: Black, oil resistant, synthetic rubber

SURFACE: wrapped surface, smooth surface

Hydraulic Hose SAE 100R17 TEMPERATURE RANGE: -40℃ (-40℉) to +100℃ (+212℉), intermittent 120℃

Standard: SAE 100R17 / ISO 11237 R17

Technical Parameters

Nominal Diameter		I.D	W.D.	O.D	W.P		B.P	Min.B.R.	Weight
inch	mm	mm	mm	mm	Bar	Psi	Bar	mm	kg/m
1/4	6.3	6.5-6.9	9.9-10.7	12.3-13.1	210	3045	840	50	0.17
5/16	8	8.0-8.5	12.1-12.9	14.0-15.0	210	3045	840	55	0.21
3/8	10	9.5-10.0	13.8-14.6	16.0-17.0	210	3045	840	65	0.25
1/2	12.5	12.5-13.0	17.0-17.8	19.9-20.9	210	3045	840	90	0.47
5/8	16	15.8-16.5	22.5-23.5	24.6-25.8	210	3045	840	105	0.59
3/4	19	19.0-19.7	25.5-26.5	28.4-29.6	210	3045	840	125	0.75
1	25	21.8-22.6	34.6-35.6	37.2-38.4	210	3045	840	150	1.46

Manufacture hoses that meet or exceed SAE 100R17 hydraulic hose. If you do not find your specified technical data in the table below, please send us your specified technical data.

Manufacturing & Quality Control

A controlled production process from raw materials to final shipment helps ensure consistent quality and reliable batch performance.

Raw Materials

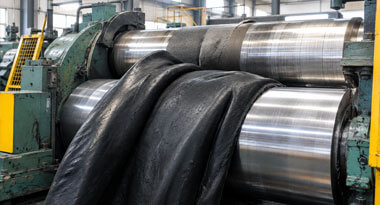

Rubber Mixing

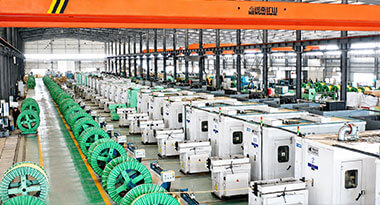

Braiding

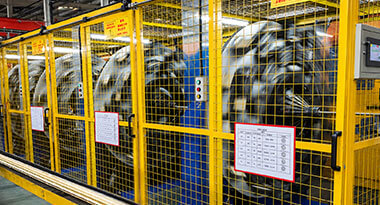

Spiraling

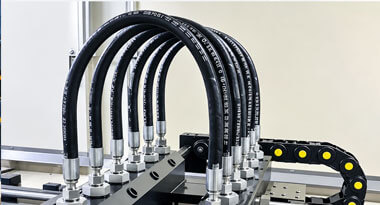

Quality Testing

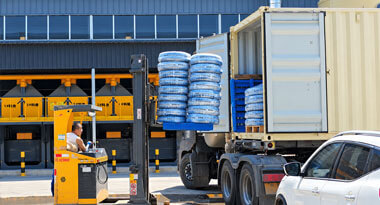

Packing & Shipment

Why Choose This Product

Manufactured to SAE J517 and ISO 11237 R17 standards with full batch traceability
100% proof pressure tested at 2× working pressure before shipment
Impulse tested to 200,000+ cycles under cyclic loading
Constant 21 MPa working pressure across all sizes, eliminating pressure rating confusion
Direct replacement for SAE 100R1AT with tighter bend radius and smaller OD
Stable lead times from Zhongxu factory with monthly capacity for repeat orders

Technical Specifications

Internal Hose	Oil resistant synthetic rubber (NBR).
Reinforcement	one layer or two braided layers of high tensile braided steel wire
Min burst pressure	84 MPa
Min. Bend Radius	50MM-150MM
Temperature	-40°C to +100°C (-55°C to +100°C, intermittent 120°C).
Working Pressure	125 – 400 Bar / 1813 – 5800 Psi.

Quality Assurance & Global Supply

Global Inquiries Welcome | Custom Solutions & Fast Delivery

FAQ

Q1: What is the difference between SAE 100R17 and SAE 100R1?

Both are compact high-pressure hoses. SAE 100R17 maintains a constant 21 MPa working pressure across all sizes, while 100R1 pressure drops as size increases. 100R17 also has a tighter bend radius than 100R1 and is a direct replacement for 100R1AT.For other compact hydraulic hose options, SAE 100R16 compact hydraulic hose is also available for medium-to-high pressure applications with limited installation space.

Q2: What working pressure can I expect?

Constant 21 MPa / 210 Bar / 3045 Psi across all sizes from 1/4" to 1". Safety factor is 4:1. Every batch is 100% proof pressure tested at 2× working pressure.

Q3: Why does 100R17 use one wire braid for small sizes and two for large sizes?

One wire braid is sufficient to achieve 21 MPa at smaller diameters. For larger sizes, two wire braids are needed to maintain the same constant pressure without increasing the outer diameter excessively.

Q4: What is your MOQ and lead time?

Flexible MOQ. Sampling from 100 meters per size. Stock sizes 7–15 days. OEM orders 20–30 days.

Q5: Do you provide OEM branding and custom packaging?

Yes. We provide custom hydraulic hose solutions, including custom laylines, cover colors, private-label packaging, datasheets and certificates.

Request a Quote

Get a Quotation for SAE 100 R17 Compact type 21mpa wire braided hydraulic hose

Send us your specifications - size, length, pressure rating, quantity and destination port. Our sales engineer will respond within 4 business hours with a quotation, datasheet and lead time.
