Product Overview

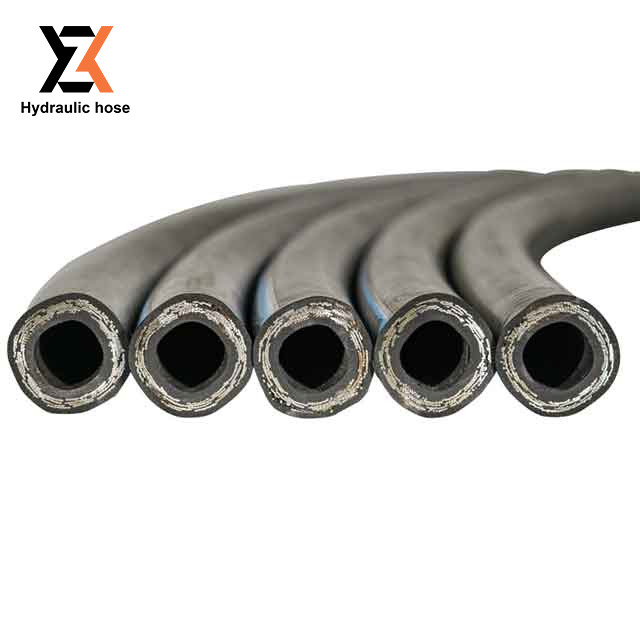

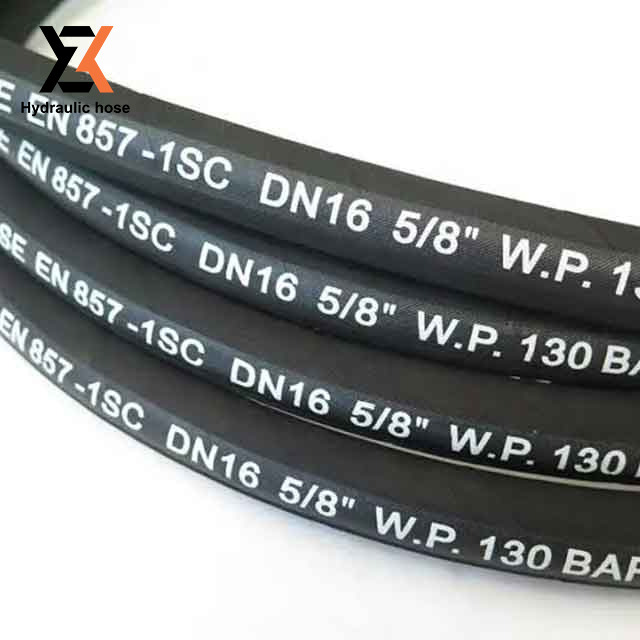

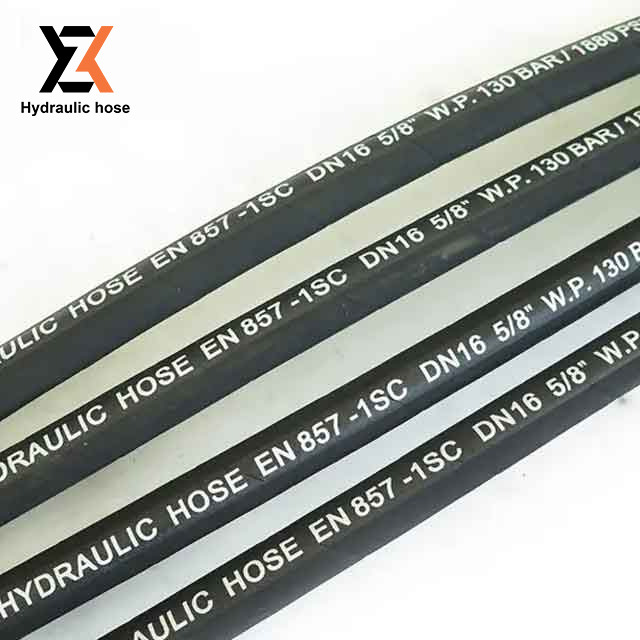

The DIN EN857 1SC hydraulic hose is a single wire braid reinforced compact rubber hose designed for medium-pressure hydraulic applications where installation space is limited. The tube is made of oil-resistant NBR synthetic rubber, reinforced with one high-tensile steel wire braid, and covered with oil and weather resistant synthetic rubber. It is widely used for construction machinery, agricultural equipment and industrial hydraulic systems with tight routing requirements.
Zhongxu produces 1SC hoses strictly to EN 857 and ISO 11237 standards, with 100% proof pressure testing on every batch.
Key Features
For higher-pressure compact hydraulic applications, explore our DIN EN857 2SC hydraulic hose with two steel wire braid reinforcement.
Inner Tube: Oil-resistant Nitrile-butadiene rubber (NBR)
Reinforcement: One layer of high-tensile steel wire braid
Cover: Abrasion and weather-resistant synthetic rubber
Ideal for:
Construction machinery hydraulic lines
Agricultural equipment
Industrial hydraulic systems
Material handling equipment
Mining support equipment
Hydraulic Hose DIN EN857 1SC Recommended For:
Medium pressure hydraulic hoses with limited installation space. Meets or exceeds the requirements of EN 857 Type 1SC and ISO 11237 Type 1SC.
Hydraulic Hose DIN EN857 1SC Application Fields:
Mine hydraulic support, oilfield extraction machinery, mine/road/construction machinery.
INNER TUBE: oil resistant synthetic nitrile rubber
REINFORCEMENT: single layer of steel wire braided
COVER: Black, oil resistant, synthetic rubber
SURFACE: wrapped surface, smooth surface
Hydraulic Hose DIN EN857 1SC TEMPERATURE RANGE: -40℃ (-40℉) to +100℃ (+212℉), intermittent 120℃
Standard: EN 857 1SC / ISO 11237 1SC
SIZE | I.D | O.D | W.P | B.P | Min.B.R. | Weight | ||
mm | inch | mm | mm | Bar | psi | Bar | mm | kg/m |
6 | 1/4 | 6.4 | 12.2 | 225 | 3265 | 900 | 75 | 0.18 |
8 | 5/16 | 7.9 | 13.5 | 215 | 3120 | 860 | 85 | 0.21 |
10 | 3/8 | 9.5 | 15.6 | 180 | 2610 | 720 | 90 | 0.28 |
13 | 1/2 | 12.7 | 19 | 160 | 2320 | 640 | 130 | 0.33 |
16 | 5/8 | 15.9 | 22.4 | 130 | 1885 | 520 | 150 | 0.41 |
19 | 3/4 | 19 | 26 | 105 | 1525 | 420 | 180 | 0.52 |
25 | 1 | 25.4 | 33.3 | 88 | 1275 | 352 | 230 | 0.78 |
32 | 1-1/4 | 31.8 | 41.5 | 75 | 1090 | 300 | 315 | 0.93 |
Manufacture hoses that meet or exceed DIN EN857 1SC . If you do not find your specified technical data in the table below, please send us your specified technical data.
A controlled production process from raw materials to final shipment helps ensure consistent quality and reliable batch performance.
Why Choose This Product
1. Manufactured to EN 857 and ISO 11237 standards with full batch traceability
2. 100% proof pressure tested at 2× working pressure before shipment
3. Impulse tested to 200,000+ cycles under cyclic loading
4. OEM branding, custom cover colors and private-label packaging available. Explore our custom hydraulic hose solutions for distributor and OEM requirements.
5. Low MOQ for sampling and rapid scale-up to container quantities
6. Stable lead times from Hengshui factory with monthly capacity for repeat orders
Technical Specifications
Internal Hose | Oil resistant synthetic rubber (NBR) |
|---|---|
Reinforcement | One high tensile steel wire braid. |
Cover | il and weather resistant synthetic rubber, wrapped/smooth cover. |
Application | Petroleum-based hydraulic fluid, water-based hydraulic fluids, water, diesel fuels, lubricating oils, glycol, mineral oils, and more. |
Temperature | -40°C to +100°C (-55°C to +100°C, intermittent 120°C). |
Working Pressure | 75 – 225 Bar / 1090 – 3265 Psi. |
Quality Assurance & Global Supply
Send us your specifications - size, length, pressure rating, quantity and destination port. Our sales engineer will respond within 4 business hours with a quotation, datasheet and lead time.
