The SAE 100R2AT / DIN EN853 2SN features two high-tensile steel wire braids for higher pressure capacity than 1SN. It is the workhorse of high-pressure hydraulic systems on excavators, loaders, cranes and press machines. Manufactured to SAE J517 and EN 853 standards, every length is proof-tested at 2× working pressure.
Explore our full range of hydraulic hoses for different pressure ratings, sizes and applications.
Key Features
Inner tube: oil resistant synthetic nitrile rubber

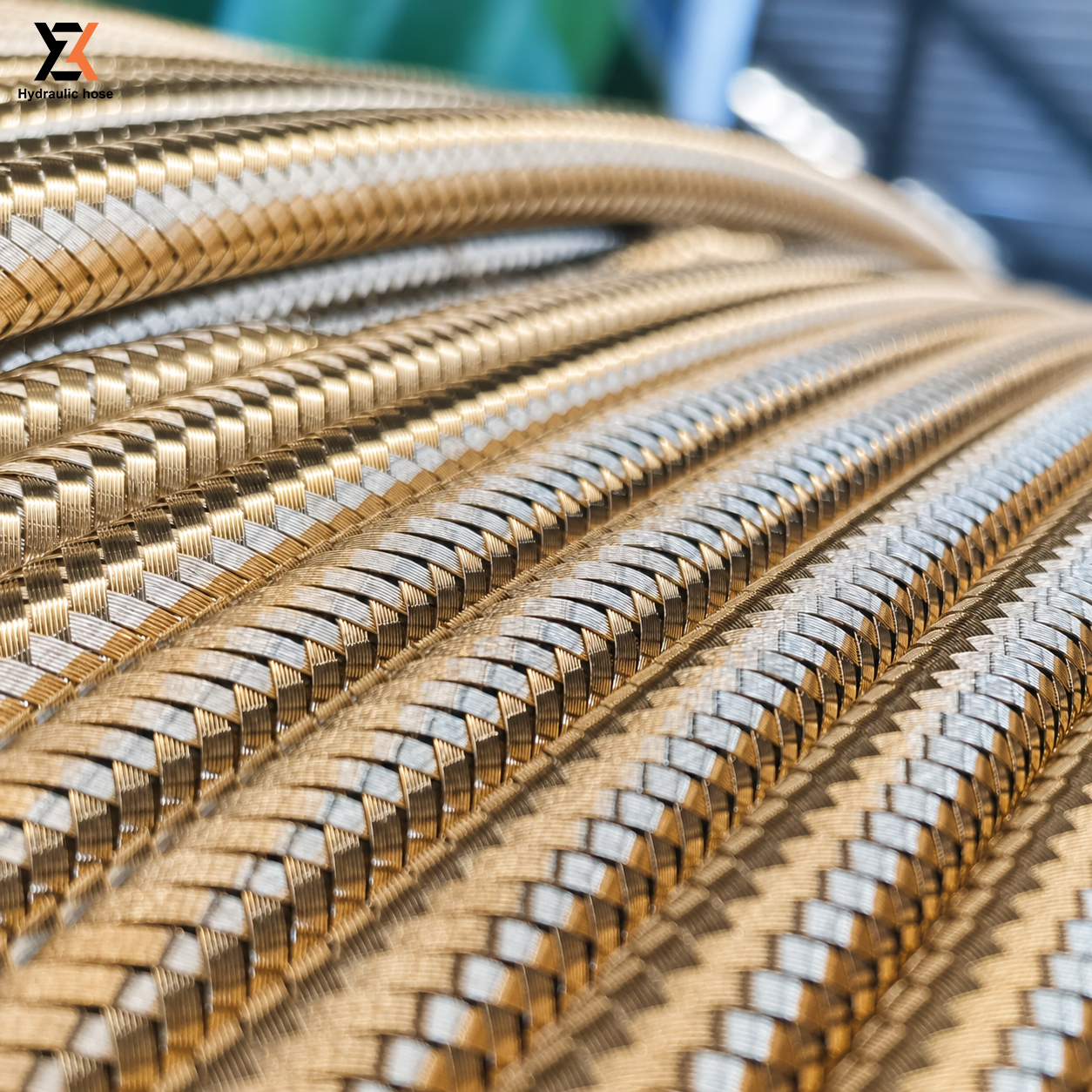

Reinforcement: two layers of high-tensile steel wire braid
Cover: abrasion and weather-resistant synthetic rubber
Suitable for:
Excavators and loaders
Cranes and lifting equipment
Press machines
Mobile hydraulics
Industrial hydraulic presses
Hydraulic Hose SAE 100R2A Recommended For:
High-pressure hydraulic lines. Meets or exceeds the requirements of SAE 100R2A performance requirements of EN853 2ST.
Hydraulic Hose SAE 100R2A Application Fields:
For high pressure hydraulic systems in industry and agriculture.
INNER TUBE: oil resistant synthetic nitrile rubber
REINFORCEMENT: two layers of steel wire braided
COVER: oil and weather resistant synthetic rubber
Working Temperature: -104℉ to +212℉ (-40℃ to +100℃)
SURFACE: wrapped surface,smooth surface
Nominal Diameter | I.D. | W.D. | O.D | W. P | P.P. | B..P | Min.B.R. | Weight | ||
inch | mm | mm | mm | mm | Psi | Bar | Bar | Bar | mm | kg/m |
3/16 | 5 | 4.6 - 5.4 | 10.6 - 11.7 | 15. 1-15.9 | 6018 | 415 | 996 | 1660 | 90 | 0.3 |
1/4 | 6 | 6.2 - 7.0 | 12.5 - 13.1 | 16.7-17.5 | 5800 | 400 | 960 | 1600 | 100 | 0.3 |
5/16 | 8 | 7.7 - 8.5 | 14.2 - 14.8 | 18.4-19.2 | 5075 | 350 | 840 | 1400 | 115 | 0.36 |
3/8 | 10 | 9.3 - 10.1 | 16.2 - 16.8 | 20.6-21.4 | 4785 | 330 | 792 | 1320 | 130 | 0.49 |
1/2 | 12 | 12.3 - 13.5 | 19.4 - 20.0 | 23.8-24.6 | 3988 | 275 | 660 | 1100 | 180 | 0.56 |
5/8 | 16 | 15.5 - 16.7 | 22.8 - 23.4 | 27.0-27.8 | 3625 | 250 | 600 | 1000 | 200 | 0.6 |
3/4 | 19 | 18.6 - 19.8 | 26.4 - 27.2 | 31.0-31.8 | 3118 | 215 | 516 | 860 | 240 | 0.83 |
1 | 25 | 25.0 - 26.4 | 33.9 - 34.7 | 38.3-39.1 | 2393 | 165 | 396 | 660 | 300 | 1.22 |
1- 1/4 | 31 | 31.4 - 33.0 | 42.8 - 43.6 | 49.2-50.0 | 1813 | 125 | 300 | 500 | 420 | 1.91 |
1- 1/2 | 38 | 37.7 - 39.3 | 49.2 - 50.0 | 55.7-56.5 | 1305 | 90 | 216 | 360 | 500 | 2.17 |
2 | 51 | 50.4 - 52.0 | 61.9 - 62.7 | 68.7-69.5 | 1160 | 80 | 192 | 320 | 630 | 2.74 |
Manufacture hoses that meet or exceed SAE 100R2A / DIN EN853 2ST. If you do not find your specified technical data in the table below, please send us your specified technical data.
A controlled production process from raw materials to final shipment helps ensure consistent quality and reliable batch performance.
Why Choose This Product
100%% proof pressure tested at 2× working pressure on every batch
Burst pressure ≥ 3× working pressure per SAE J517 and EN 853
Impulse tested to 200,000+ cycles for cyclic loading reliability
Full batch traceability from raw rubber to finished hose
OEM branding, custom cover colors and printing available
Stable lead times and container-scale monthly capacity
Technical Specifications
Inner Tube | Oil-resistant NBR synthetic rubber |
|---|---|
Reinforcement | Two high-tensile steel wire braids |
Cover | Abrasion & weather resistant synthetic rubber |
Temperature | -40°C to +100°C |
Standard | SAE 100R2A / EN853 2ST |
Inside Diameter | 3/16" to 2" |
Working Pressure | 41 MPa (3/16") to 8 MPa (2") |
Burst Pressure | ≥ 3× working pressure |
Length | 50m / 100m / custom |
Color | Black (custom available) |
