Product Overview

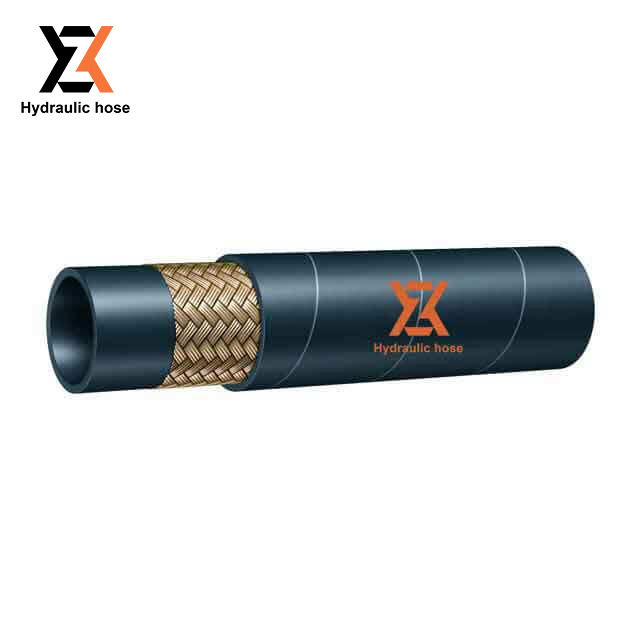

The SAE 100R1AT / EN853 1SN hydraulic hose is a single wire braid reinforced rubber hose designed for medium-pressure hydraulic applications. The tube is made of oil-resistant NBR synthetic rubber, reinforced with one high-tensile steel wire braid, and covered with abrasion-resistant synthetic rubber. It is the most widely used hydraulic hose for construction machinery, agricultural equipment and industrial hydraulic systems.
Zaozhuang Zhongxu Rubber, a professional Hydraulic Hose Manufacturer, produces 1SN hoses strictly to SAE J517 and EN 853 standards, with 100% proof pressure testing on every batch.
Key Features
Explore our full range of Hydraulic Hoses for different pressure ratings and industrial applications.
Inner tube: oil-resistant NBR synthetic rubber
Reinforcement: one layer of high-tensile steel wire braid
Cover: abrasion and weather-resistant synthetic rubber
Applications
Ideal for:
Construction machinery hydraulic lines
Agricultural equipment
Industrial hydraulic systems
Material handling equipment
Mining support equipment
Hydraulic Hose SAE 100R1AT Recommended For:

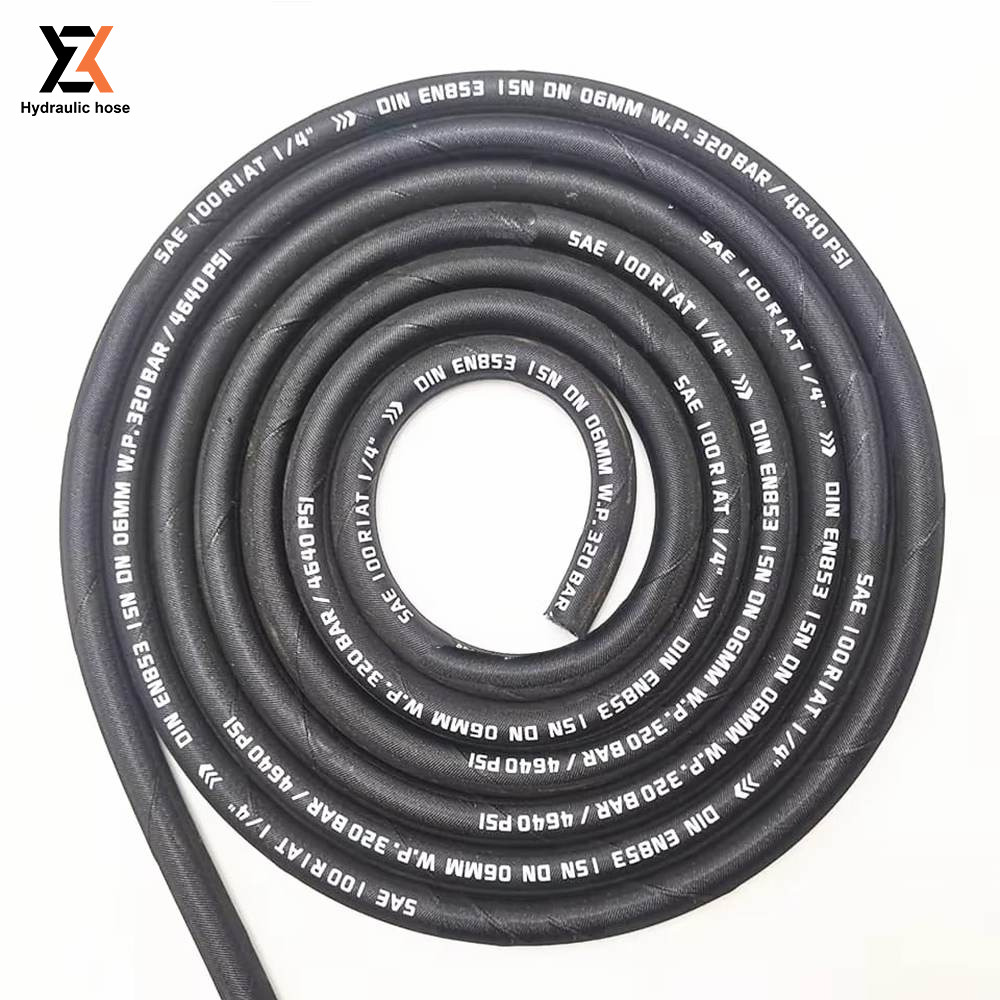

Medium pressure hydraulic hoses. Meets or exceeds the requirements of SAE 100 R1AT Type AT and performance requirements of EN 853 1SN.
Hydraulic Hose SAE 100R1AT Application Fields:
Mine hydraulic support, oilfield extraction machinery, mine/road/construction machinery.

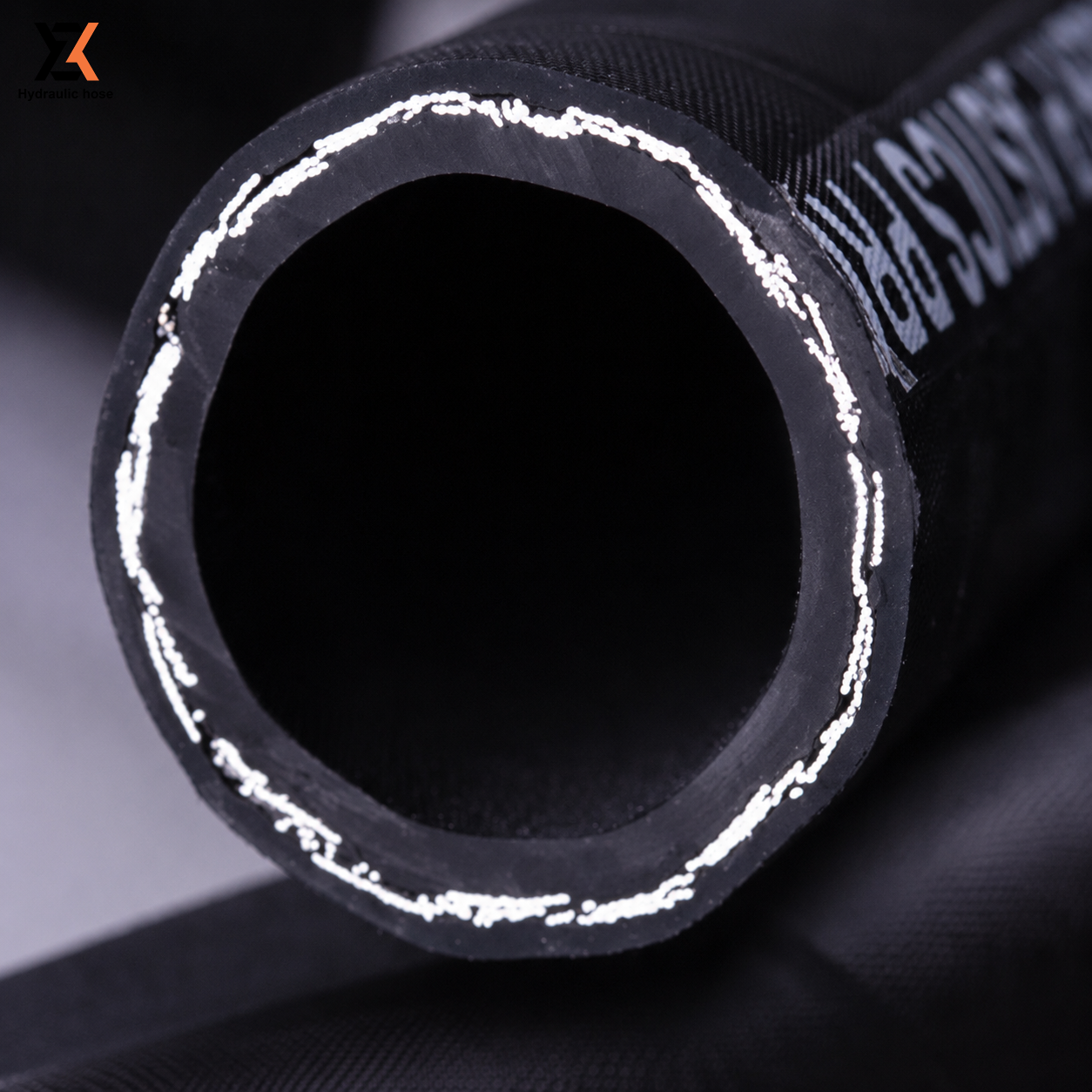

INNER TUBE: oil resistant synthetic nitrile rubber
REINFORCEMENT: single layer of steel wire braided
COVER: Black, oil resistant, synthetic rubber
SURFACE: wrapped surface,smooth surface
Hydraulic Hose SAE 100R1 TEMPERATURE RANGE: -40℃（-104℉） to +100℃ （+212℉）
Nominal Diameter | I.D | W.D. | O. D | W.P | P.P. | B. P | Min.B.R | Weight | ||
inch | mm | mm | mm | mm | psi | bar | bar | bar | mm | kg/m |
3/16 | 5 | 4.6 - 5.4 | 8.9 - 10.1 | 11.5 - 12.2 | 3625 | 250 | 600 | 1000 | 89 | 0.2 |
1/4 | 6 | 6.2 - 7.0 | 10.8 - 11.4 | 12.7 -13.5 | 3263 | 220 | 540 | 900 | 102 | 0.25 |
5/16 | 8 | 7.7 - 8.5 | 12.5 - 13.1 | 14.6 - 15.4 | 3118 | 215 | 510 | 850 | 114 | 0.31 |
3/8 | 10 | 9.3 - 10.1 | 14.5 - 15.1 | 16.7 - 17.5 | 2610 | 180 | 432 | 720 | 127 | 01236 |
1/2 | 12 | 12.3-13.5 | 17.7-18.3 | 19.8 - 20.6 | 2320 | 160 | 385 | 640 | 178 | 0.45 |
5/8 | 16 | 15.5-16.7 | 21.1 - 21.7 | 23.2 - 24.0 | 1885 | 130 | 315 | 520 | 203 | 0.52 |
3/4 | 19 | 18.6-19.8 | 24.6 - 25.4 | 26.9-27.7 | 1523 | 105 | 255 | 420 | 241 | 0.65 |
1 | 25 | 25.0-26.4 | 32.1 - 32.9 | 34.6-35.4 | 1276 | 88 | 210 | 350 | 305 | 0.91 |
1-1/4 | 31 | 31.4-33.0 | 40.8 - 41.6 | 43.3-44.1 | 914 | 63 | 150 | 250 | 419 | 1.3 |
1-1/2 | 38 | 37.7-39.3 | 47.2 - 48.0 | 49.7-50.5 | 725 | 50 | 120 | 200 | 508 | 1.7 |
2 | 51 | 50.4-52.0 | 59.9 - 60.7 | 62.4-63.2 | 580 | 40 | 96 | 160 | 635 | 2 |
Manufacture hoses that meet or exceed SAE 100R1AT / EN853 1SN hydraulic hose. If you do not find your specified technical data in the table below, please send us your specified technical data.
A controlled production process from raw materials to final shipment helps ensure consistent quality and reliable batch performance.
Why Choose This Product
Manufactured to SAE J517 and EN 853 standards with full batch traceability
100%% proof pressure tested at 2× working pressure before shipment
Impulse tested to 200,000+ cycles under cyclic loading
OEM branding, custom cover colors and private-label packaging available
Low MOQ for sampling and rapid scale-up to container quantities
Stable lead times from Hengshui factory with monthly capacity for repeat orders
Need customized specifications or private-label services? Discover our Custom Hydraulic Hose Solutions for your business.
Technical Specifications
Internal Hose | Oil resistant synthetic rubber. |
|---|---|
Reinforcement | One high tensile steel wire braid. |
Cover | Oil and weather resistant synthetic rubber, Wrapped/Smooth cover. |
Application | Petroleum-based hydraulic fluid, gasoline, water, diesel fuels, lubricating oils, glycol, mineral oils, and more. |
Temperature | -40°C to +100°C (-55°C to +100°C, intermittent 120°C). |
Working Pressure | 40 – 250 Bar / 580 – 3625 Psi. |
