SAE 100R16 Large Size Hydraulic Hose - Wire Braided for Very High Flow Applications

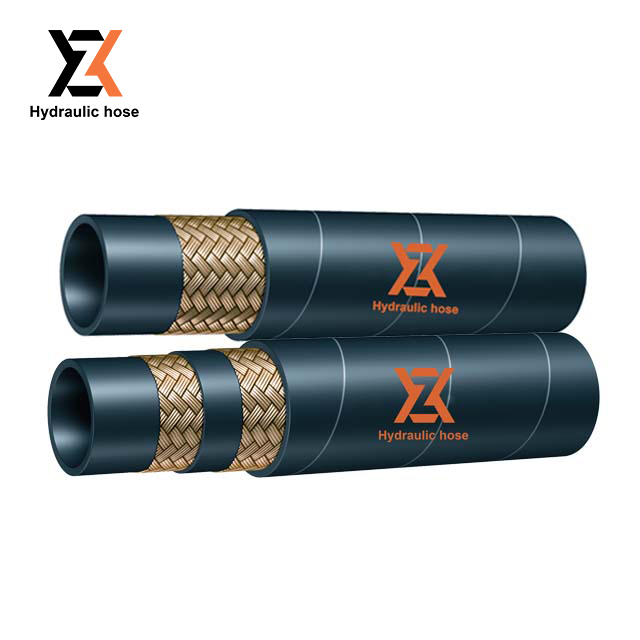

This hose shall consist of an inner tube of oil resistant synthetic rubber,steel wirereinforcement according to hose design(one or two braids),and an oil and weatherresistant synthetic rubber cover.A ply or braid of suitable material may be used over theinner tube and/orover the wire reinforcement to anchor the synthetic rubber to the wire.

Model:
SAE 100 R16

Quantity:
Availability:





Inquire Add to Basket

Product Description

FAQ

Applications

This section covers hose for use with petroleum base hydraulic fluids within a temperaturerange of-40°C~+100℃.

Technical Parameters

size	Standaid			I.D		W.D		O.D		max W.P		P.P		min B.P		min B.R		W.T
size	Dash	mm	inch	Min	Max	Min	Max	Min	max	MPa	Psi	MPa	Psi	MPa	Psi	inch	mm	kg/m
06R16	-4	6.3	1/4	6.5	6.9	11.4	12.3	13.3	14.3	40	5800	80	11600	160	23200	1.97	50	0.23
08R16	-5	8	5/16	8	8.5	12.5	13.3	14.5	15.5	35	5075	70	10150	140	20300	2.17	55	0.25
10R16	-6	10	3/8	9.5	10	15.1	15.9	17.1	18.1	33	4785	66	9570	132	19140	2.56	65	0.34
13R16	-8	12.5	1/2	12.5	13	18.2	19	20.3	21.3	27.5	3990	55	7975	110	15950	3.54	90	0.42
16R16	-10	16	5/8	15.8	16.5	21.6	22.6	23.6	24.8	25	3625	50	7250	100	14500	3.94	100	0.7
19R16	-12	19	3/4	19	19.7	25.3	26.3	27.6	28.8	21.5	3120	43	6235	86	12470	4.72	120	0.87
25R16	-16	25	1	21.8	22.6	32.4	33.6	34.6	35.8	16.5	2390	33	4785	66	9570	5.91	150	1.22
32R16	-20	31.5	1-1/4	32	32.8	40.4	41.6	42.6	43.8	12.5	1813	25	3625	50	7250	8.27	210	1.54

Production Workshop

Fiber weaving

Steel wire winding

Wire braiding machine

Friction testing machine

High-speed joint venture

Storehouse

FAQ

Q1: What is the hydraulic hose?

A1: A hydraulic hose is specifically designed for hydraulic systems. They convey high-pressure oils or water between the fluid ports of the pumps and actuators, where the oils or water are used to create mechanical movement.

Q2: Do you provide free samples?

A2: Yes. Since our establishment, we have followed a free sample policy. We believe there is no "best" product-only the most suitable one. Samples are essential for customers and for maintaining our brand reputation.

Q3: What standards do your products comply with?

A3: All hoses comply with GB, DIN, RMA, AS, JIS, SABS, and other standards. We also develop special specifications according to customer requirements.

Q4: What is the purpose of a braided hose?

A4: Primarily, they are used to transfer liquid, air and other gases under high and low pressure. Steel braided hose pipes are particularly sought after in manufacturing industries, as part of hydraulic systems or to safely transfer material through a production process.
