Product Overview

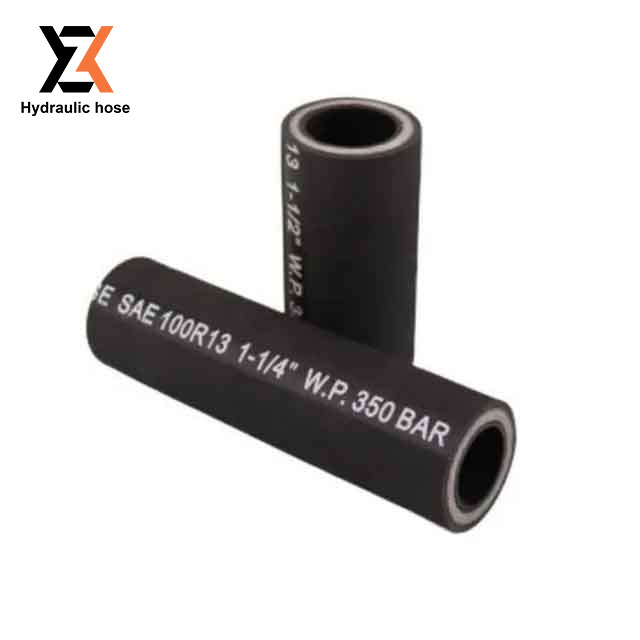

The SAE 100R13 hydraulic hose is a four or six spiral wire reinforced rubber hose designed for extremely high pressure hydraulic applications with severe pulsing. The tube is made of oil and water resistant synthetic rubber, reinforced with multiple layers of high-tensile steel wire spirals, and covered with weather and temperature resistant synthetic rubber. It delivers a constant working pressure of 35 MPa across all sizes and is widely used for heavy-duty construction, mining and industrial equipment.
Zhongxu produces 100R13 hoses strictly to SAE J517, EN 856 R13 and ISO 3862 R13 standards, with 100% proof pressure testing on every batch. MSHA approved.
For other high-pressure spiral hose options, buyers can also consider our SAE 100R15 hydraulic hose for demanding hydraulic applications.

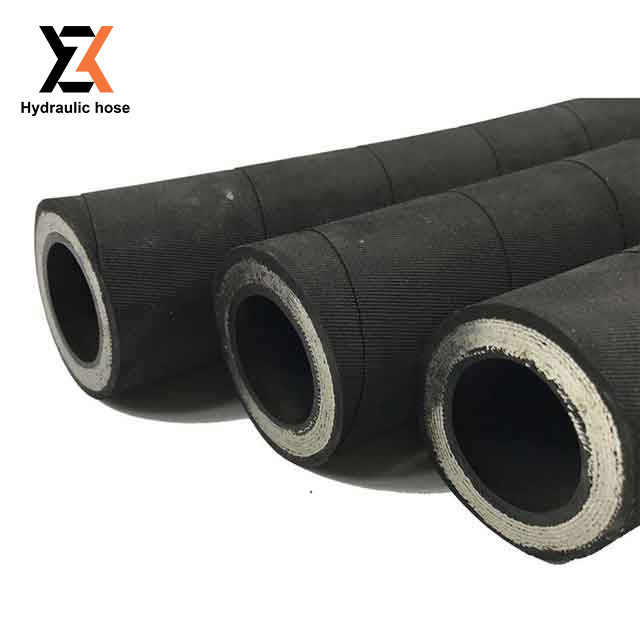

Hose Structure
Inner Tube: High quality black synthetic rubber, resistant to oil and water.
Reinforcement: Four layers of 1/4" to 1" (DN 19- 31) high-tensile steel wire spirals .Six layers of 1-1/4" to 2" (DN 38 - 51) high-tensile steel wire spirals .
Cover: High-quality black abrasion, corrosion and weather resistant synthetic rubber. MSHA certified. Wrapped or smooth surface.
Applications
Ideal for:
Construction equipment — excavators, forklifts, loaders, road rollers, concrete pump trucks, vibratory compactors
Mining industry — mining rigs, mining belt conveyors, mining cranes
Industrial machinery — metallurgical equipment, plastic machinery, presses
Material handling equipment
High-performance industrial market
Hydraulic Hose SAE 100R13 Recommended For:
Extremely high pressure, high impulse applications subject to surge or flexing. Meets or exceeds the requirements of SAE 100R13, EN 856 R13 and ISO 3862 R13.
Hydraulic Hose SAE 100R13 Application Fields:
Mine hydraulic support, oilfield extraction machinery, mine/road/construction machinery.
INNER TUBE: oil and water resistant synthetic rubber
REINFORCEMENT: Four layers of 1/4" to 1" (DN 19- 31) high-tensile steel wire spirals .Six layers of 1-1/4" to 2" (DN 38 - 51) high-tensile steel wire spirals .
COVER: Black, oil, weather and abrasion resistant synthetic rubber, MSHA certified
SURFACE: wrapped surface, smooth surface
Hydraulic Hose SAE 100R13 TEMPERATURE RANGE: -40℃to +121℃
Standard: SAE 100R13 / EN 856 R13 / ISO 3862 R13
ID | W.D | O.D | W.P | P.P | B,R | Min.BR | Weight | ||
inch | mm | mm | mm | Psi | Bar | Bar | Bar | mm | (kg/m) |
3/4 | 18.6-19.8 | 29.2-29.8 | 32.0-32.8 | 5075 | 350 | 830 | 1400 | 240 | 1.65 |
1 | 25.0-26.4 | 35.5-36.1 | 38.3-39.1 | 5075 | 350 | 830 | 1400 | 300 | 2.25 |
1-1/4 | 31.4-33.0 | 47.1-47.7 | 49.9-50.7 | 5075 | 350 | 830 | 1400 | 420 | 3.6 |
1-1/2 | 37.7-39.3 | 54.7-55.3 | 57.5-58.3 | 5075 | 350 | 830 | 1400 | 500 | 4.75 |
2 | 50.4-52.0 | 67.7-68.3 | 71.5-72.3 | 5075 | 350 | 830 | 1400 | 630 | 6.9 |
Manufacture hoses that meet or exceed SEA 100R13 . If you do not find your specified technical data in the table below, please send us your specified technical data.
A controlled production process from raw materials to final shipment helps ensure consistent quality and reliable batch performance.
Manufactured to SAE J517, EN 856 R13 and ISO 3862 R13 standards with full batch traceability
100% proof pressure tested at 2× working pressure before shipment
Impulse tested to 1,000,000+ cycles under cyclic loading
MSHA approved cover for mining and underground applications
Large stock of fittings and hoses, immediate response up to 50mm diameter
Stable lead times from Hengshui factory with monthly capacity for repeat orders
Technical Specifications
Internal Hose | Oil resistant synthetic rubber (NBR). |
|---|---|
Reinforcement | Four or six spirals of high tensile steel wire. |
Cover | Oil, weather and abrasion resistant synthetic rubber, wrapped/smooth cover. MSHA certified. |
Application | Petroleum-based hydraulic fluid, water-based hydraulic fluids, water, diesel fuels, lubricating oils, glycol, mineral oils, and more. |
Temperature | -40°C to +121°C |
Working Pressure | -40°C to +121°C |
