Product Overview

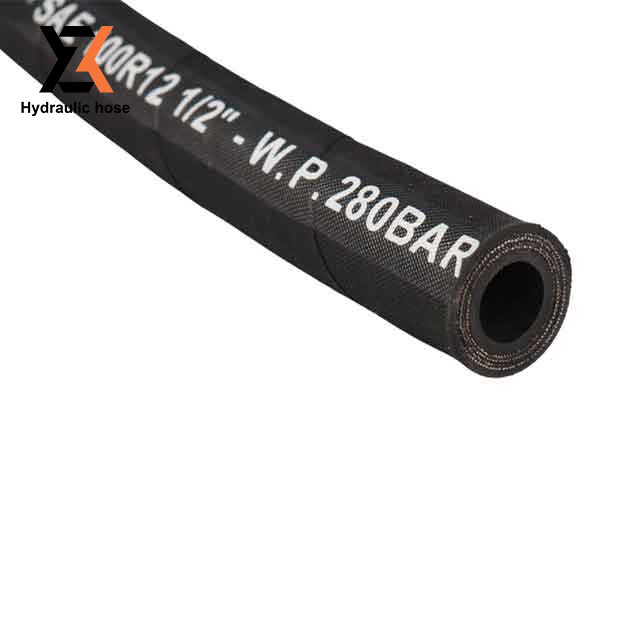

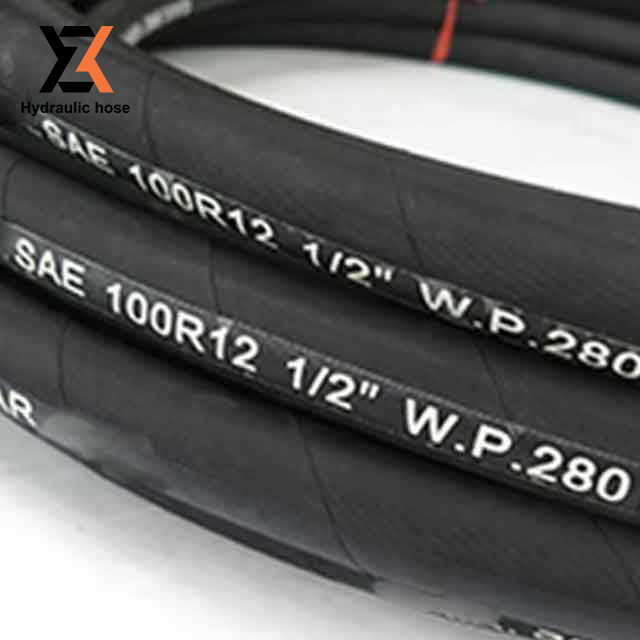

The SAE 100R12 hydraulic hose is a four spiral wire reinforced rubber hose designed for high pressure hydraulic applications with severe pulsing. The tube is made of oil and fuel resistant NBR synthetic rubber, reinforced with four layers of high-tensile steel wire spirals in alternating directions, and covered with MSHA certified abrasion and weather resistant synthetic rubber. It delivers working pressures from 18 to 28 MPa depending on size and is widely used for excavators, loaders, construction machinery, mining and oil and gas equipment.
Zhongxu produces 100R12 hoses to SAE J517 and ISO 3862 R12 requirements, while our DIN EN856 4SH hydraulic hose provides a comparable four-spiral high-pressure solution for demanding hydraulic systems.

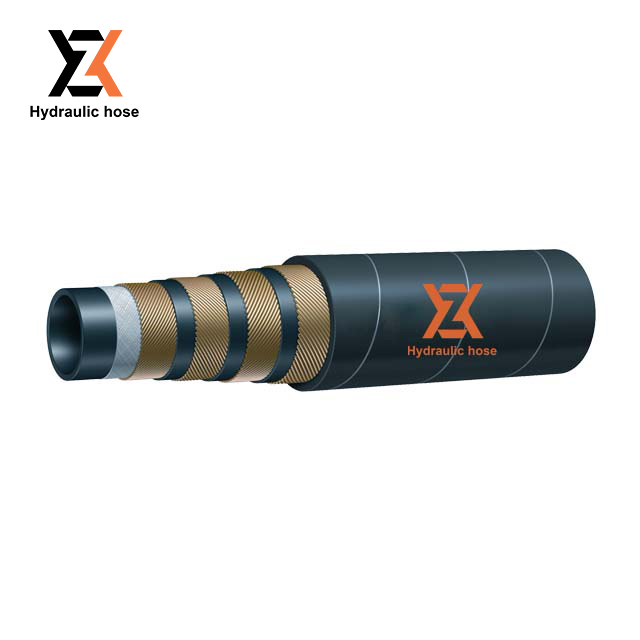

Inner tube: oil-resistant NBR synthetic rubber
Reinforcement: four alternating layers of high-tensile steel wire spiral
Cover: thick abrasion, oil and weather-resistant synthetic rubber
I.D | W.D | O.D | W.P | P.P | B.P | Min.B,R | Weight | ||
inch | mm | mm | mm | psi | bar | bar | bar | mm | kg/m |
3/8 | 9.3-10.1 | 17.3-17.9 | 19.9-20.7 | 4060 | 280 | 560 | 1120 | 125 | 0.7 |
1/2 | 12.3-13.5 | 20.8-21.4 | 23.4-24.2 | 4060 | 280 | 560 | 1120 | 180 | 0.84 |
5/8 | 15.5-16.7 | 24.5-25.1 | 27.1-27.9 | 4060 | 280 | 560 | 1120 | 200 | 1.1 |
3/4 | 18.6-19.8 | 27.8-28.4 | 30.4-31.2 | 4060 | 280 | 560 | 1120 | 240 | 1.33 |
1 | 25.0-26.4 | 35.1-35.7 | 38.3-39.1 | 4060 | 280 | 560 | 1120 | 300 | 1.85 |
1-1/4 | 31.4-33.0 | 44.1-44.7 | 47.3-48.1 | 3045 | 210 | 420 | 840 | 420 | 2.65 |
1-1/2 | 37.7-39.3 | 50.1-50.7 | 53.5-54.3 | 2540 | 175 | 350 | 700 | 500 | 3.2 |
2 | 50.4-52.0 | 62.7-63.3 | 66.9-67.7 | 2540 | 175 | 350 | 700 | 630 | 4.2 |
Manufacture hoses that meet or exceed SEA 100R12 . If you do not find your specified technical data in the table below, please send us your specified technical data.
A controlled production process from raw materials to final shipment helps ensure consistent quality and reliable batch performance.
Manufactured to SAE J517, EN 856 4SH and ISO 3862 R12 standards with full batch traceability
100% proof pressure tested at 2× working pressure before shipment
Impulse tested to 1,000,000+ cycles under cyclic loading
MSHA approved cover for mining and underground applications
Large stock of fittings and hoses, immediate response up to 50mm diameter
Stable lead times from Hengshui factory with monthly capacity for repeat orders
Technical Specifications
Internal Hose | Oil resistant synthetic rubber (NBR). |
|---|---|
Reinforcement | Four spirals of high tensile steel wire. |
Cover | Oil, weather and abrasion resistant synthetic rubber, wrapped/smooth cover. MSHA certified. |
Application | Petroleum-based hydraulic fluid, water-glycol, water-oil emulsion hydraulic fluids, air, diesel fuels, lubricating oils, glycol, mineral oils, and more. |
Temperature | -40°C to +121°C |
Working Pressure | 175 – 280 Bar /2540 – 4060 Psi (depending on size). |
Quality Assurance & Global Supply
Send us your specifications - size, length, pressure rating, quantity and destination port. Our sales engineer will respond within 4 business hours with a quotation, datasheet and lead time.
