The SS04 hydraulic hose is a four spiral wire reinforced soft rubber hose designed for high pressure and high temperature hydraulic applications. The tube is made of oil-resistant synthetic rubber, reinforced with four spirals of high-tensile steel wire, and covered with oil, abrasion, ozone and weather resistant synthetic rubber. It offers higher pressure resistance and temperature resistance than EN 853 standard hoses, with a more flexible hose body. It can be used as a replacement for EN 853 standard hoses and is widely used for mining machinery and other heavy-duty equipment.Zhongxu, a professional hydraulic hose manufacturer, produces SS04 hoses with high-tensile steel wire spiral reinforcement for demanding hydraulic systems.
Zhongxu produces SS04 hoses strictly to EN 856 4SP/4SH standards, with 100% proof pressure testing on every batch.
Inner tube: oil-resistant NBR synthetic rubber
Reinforcement: four alternating layers of high-tensile steel wire spiral
Cover: thick abrasion, oil and weather-resistant synthetic rubber
Ideal for:
Mining machinery hydraulic lines
Heavy-duty equipment hydraulic systems
Construction machinery
Industrial hydraulic systems
Material handling equipment
Hydraulic Hose SS04 Recommended For:
High pressure and high temperature hydraulic hoses for mining and heavy-duty applications. Suitable for conveying petroleum-based hydraulic fluids, water-based hydraulic fluids and ethylene glycol aqueous solutions. Meets or exceeds the requirements of EN 856 4SP / 4SH.
Hydraulic Hose SS04 Application Fields:
Mine hydraulic support, oilfield extraction machinery, mine/road/construction machinery.
INNER TUBE: oil-resistant synthetic rubber
REINFORCEMENT: four spirals of high-tensile steel wire
COVER: Black, oil, abrasion, ozone and weather resistant synthetic rubber
SURFACE: wrapped surface, smooth surface
Hydraulic Hose SS04 TEMPERATURE RANGE: -40℃ (-40℉) to +121℃ (+250℉)
Standard: EN 856 4SP / 4SH (EN 853 replacement)
SIZE | I.D | W.D | O.D | W.P | P.P | B.P | min B.R | W.T | |||||
mm | inch | Min | Max | Min | Max | Min | max | Bar | Psi | Bar | Bar | mm | kg/m |
6.3 | 1/4 | 6.4 | 6.8 | 12.2 | 13.2 | 14.4 | 15.4 | 450 | 6525 | 900 | 1800 | 45 | 0.44 |
8 | 5/16 | 8 | 8.5 | 13.8 | 14.8 | 15.9 | 16.9 | 430 | 6235 | 860 | 1720 | 50 | 0.49 |
10 | 3/8 | 9.5 | 9.9 | 16.2 | 17.2 | 18.2 | 19.2 | 420 | 6090 | 840 | 1680 | 55 | 0.59 |
12.5 | 1/2 | 12.7 | 13.3 | 19.3 | 20.3 | 21.3 | 22.3 | 350 | 5075 | 700 | 1400 | 60 | 0.71 |
16 | 5/8 | 15.8 | 16.4 | 22.4 | 23.6 | 24.5 | 25.7 | 300 | 4350 | 600 | 1200 | 80 | 0.85 |
19 | 3/4 | 19 | 19.6 | 26 | 27 | 28 | 29 | 280 | 4060 | 560 | 1120 | 110 | 1.14 |
25 | 1 | 25 | 25.6 | 33.4 | 34.4 | 35.6 | 36.6 | 280 | 4060 | 560 | 1120 | 150 | 1.39 |
31.5 | 1-1/4 | 31.6 | 32.4 | 43.2 | 44.4 | 45.8 | 47 | 220 | 3190 | 440 | 880 | 190 | 2.15 |
38 | 1-1/2 | 37.7 | 38.5 | 49.5 | 50.7 | 52.5 | 53.7 | 200 | 2900 | 400 | 800 | 250 | 2.52 |
51 | 2 | 50.6 | 51.5 | 62.1 | 63.7 | 65.1 | 66.7 | 200 | 2900 | 400 | 800 | 300 | 3.49 |
Manufacture hoses that meet or exceed SS04 . If you do not find your specified technical data in the table below, please send us your specified technical data.

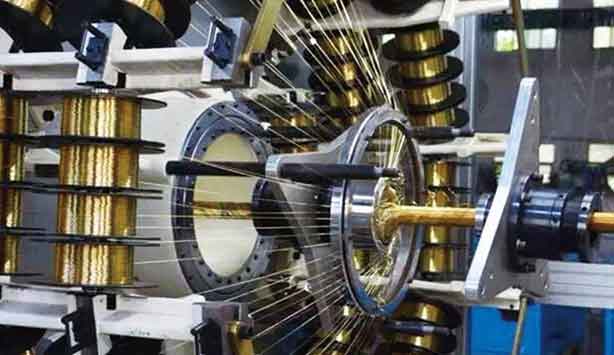

A controlled production process from raw materials to final shipment helps ensure consistent quality and reliable batch performance.
Manufactured to EN 856 4SP / 4SH standards with full batch traceability
100% proof pressure tested at 2× working pressure before shipment
Higher pressure and temperature resistance than EN 853 hoses
More flexible hose body for easy installation in tight spaces
Direct replacement for EN 853 standard hoses with improved performance
Stable lead times from Hengshui factory with monthly capacity for repeat orders
Custom hydraulic hose solutions are available for specific size, pressure, reinforcement, cover, branding and packaging requirements.
Technical Specifications
Internal Hose | Oil resistant synthetic rubber (NBR). |
|---|---|
Reinforcement | Four spirals of high-tensile steel wire. |
Cover | Oil, abrasion, ozone and weather resistant synthetic rubber, wrapped/smooth cover. |
Application | Petroleum-based hydraulic fluids, water-based hydraulic fluids, ethylene glycol aqueous solutions, water, diesel fuels, lubricating oils, mineral oils, and more. |
Temperature | -40°C to +121°C (-40°F to +250°F). |
Working Pressure | 450 – 651 Bar / 4060 – 6090 Psi. |
