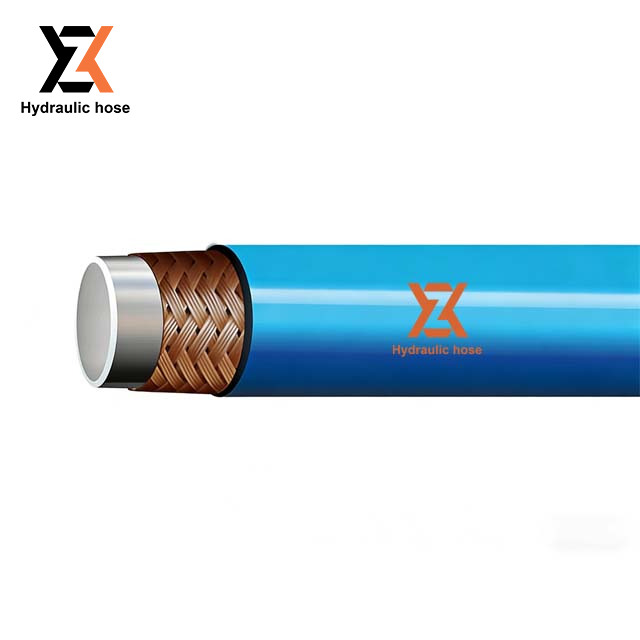

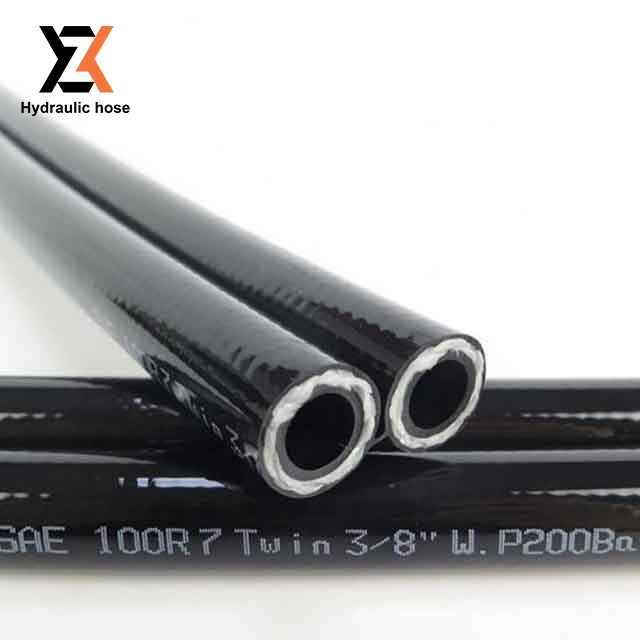

The SAE 100R7 hydraulic hose is a fiber braid reinforced resin hose designed for high pressure hydraulic applications. The tube is made of oil-resistant synthetic rubber, reinforced with one braid of high-tensile synthetic fiber, and covered with oil, abrasion, ozone and weather resistant synthetic rubber. It is suitable for conveying mineral oils, water-glycol solutions, water-oil emulsions, water and air. It is not suitable for phosphate ester-based hydraulic fluids.
Zhongxu produces SAE 100R7 hoses strictly to SAE J517, EN 855 R7 and ISO 3949 R7 standards, with 100% proof pressure testing on every batch.
Explore our full range of hydraulic hoses for different pressure, temperature and application requirements.
Inner Tube: Oil-resistant synthetic rubber.
Reinforcement: One braid of high-tensile synthetic fiber.
Cover: Oil, abrasion, ozone and weather-resistant synthetic rubber. Black color. Wrapped or smooth surface.
Ideal for:
Hydraulic systems using mineral oils
Water-glycol solutions and water-oil emulsions
Water and air applications
Industrial machinery
Agricultural equipment
Material handling equipment
Hydraulic Hose SAE 100R7 Recommended For:
High pressure hydraulic hoses for mineral oils, water-glycol solutions, water-oil emulsions, water and air. Not suitable for phosphate ester-based hydraulic fluids. Meets or exceeds SAE 100R7, EN 855 R7 and ISO 3949 R7.
Hydraulic Hose SAE 100R7 Application Fields:
Industrial hydraulic systems, water and air lines, mining machinery, construction machinery.

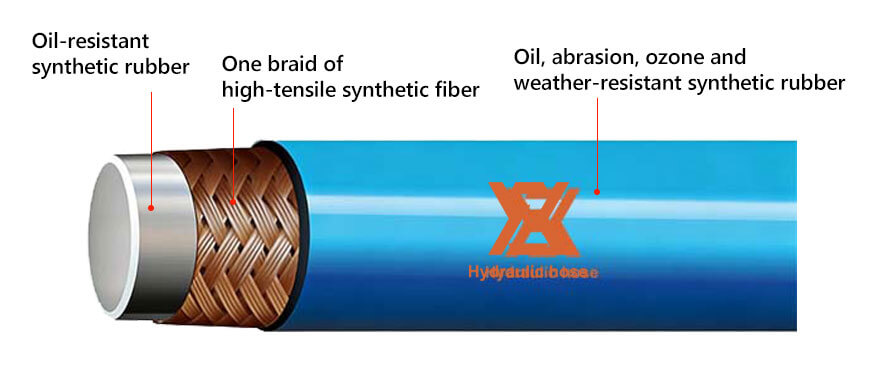

INNER TUBE: oil-resistant synthetic rubber
REINFORCEMENT: one braid of high-tensile synthetic fiber
COVER: Black, oil, abrasion, ozone and weather resistant synthetic rubber
SURFACE: wrapped surface, smooth surface
Hydraulic Hose SAE 100R7 TEMPERATURE RANGE: -40℃ (-40℉) to +100℃ (+212℉).
Standard: SAE 100R7 / EN 855 R7 / ISO 3949 R7
Detailed Technical Specifications
size | I.D | O.D | W.P | B.P | Min.B.R. | |||
mm | inch | mm | mm | Bar | psi | Bar | mm | |
5 | 3/16 | 6.5-6.9 | 13.3-14.3 | 400 | 5800 | 1600 | 50 | |
6 | 1/4 | 8.0-8.5 | 14.5-15.5 | 350 | 5075 | 1400 | 55 | |
8 | 5/16 | 9.5-10.0 | 17.1-18.1 | 330 | 4785 | 1320 | 65 | |
10 | 3/8 | 12.5-13.0 | 20.3-21.3 | 275 | 3990 | 1100 | 90 | |
12.5 | 1/2 | 15.8-16.5 | 23.6-24.8 | 250 | 3625 | 1000 | 100 | |
16 | 5/8 | 19.0-19.7 | 27.6-28.8 | 215 | 3120 | 860 | 120 | |
19 | 3/4 | 21.8-22.6 | 34.6-35.8 | 165 | 2390 | 660 | 150 | |
25 | 1 | 32.0-32.8 | 42.6-43.8 | 125 | 1813 | 500 | 210 | |
Manufacture hoses that meet or exceed SAE 100R7. If you do not find your specified technical data in the table below, please send us your specified technical data.
A controlled production process from raw materials to final shipment helps ensure consistent quality and reliable batch performance.
Manufactured to SAE J517, EN 855 R7 and ISO 3949 R7 standards with full batch traceability
100% proof pressure tested at 2× working pressure before shipment
One braid of high-tensile synthetic fiber for high pressure and flexibility
Suitable for a wide range of fluids including water and air
Not suitable for phosphate ester-based hydraulic fluids
Stable lead times from Hengshui factory with monthly capacity for repeat orders
Technical Specifications
Internal Hose | Oil resistant synthetic rubber (NBR). |
|---|---|
Reinforcement | One braid of high-tensile synthetic fiber. |
Cover | Oil, abrasion, ozone and weather resistant synthetic rubber, wrapped/smooth cover. |
Application | Mineral oils, water-glycol solutions, water-oil emulsions, water and air. Not suitable for phosphate ester-based hydraulic fluids. |
Temperature | -40°C to +100°C (-40°F to +212°F) |
Working Pressure | 125 -400 Bar / 1813 – 5800 Psi. |
Quality Assurance & Global Supply
Send us your specifications - size, length, pressure rating, quantity and destination port. Our sales engineer will respond within 4 business hours with a quotation, datasheet and lead time.
